9137200997 Rev D BE1-51 Time Overcurrent Characteristic Curves A-3
P0049-02
1.5

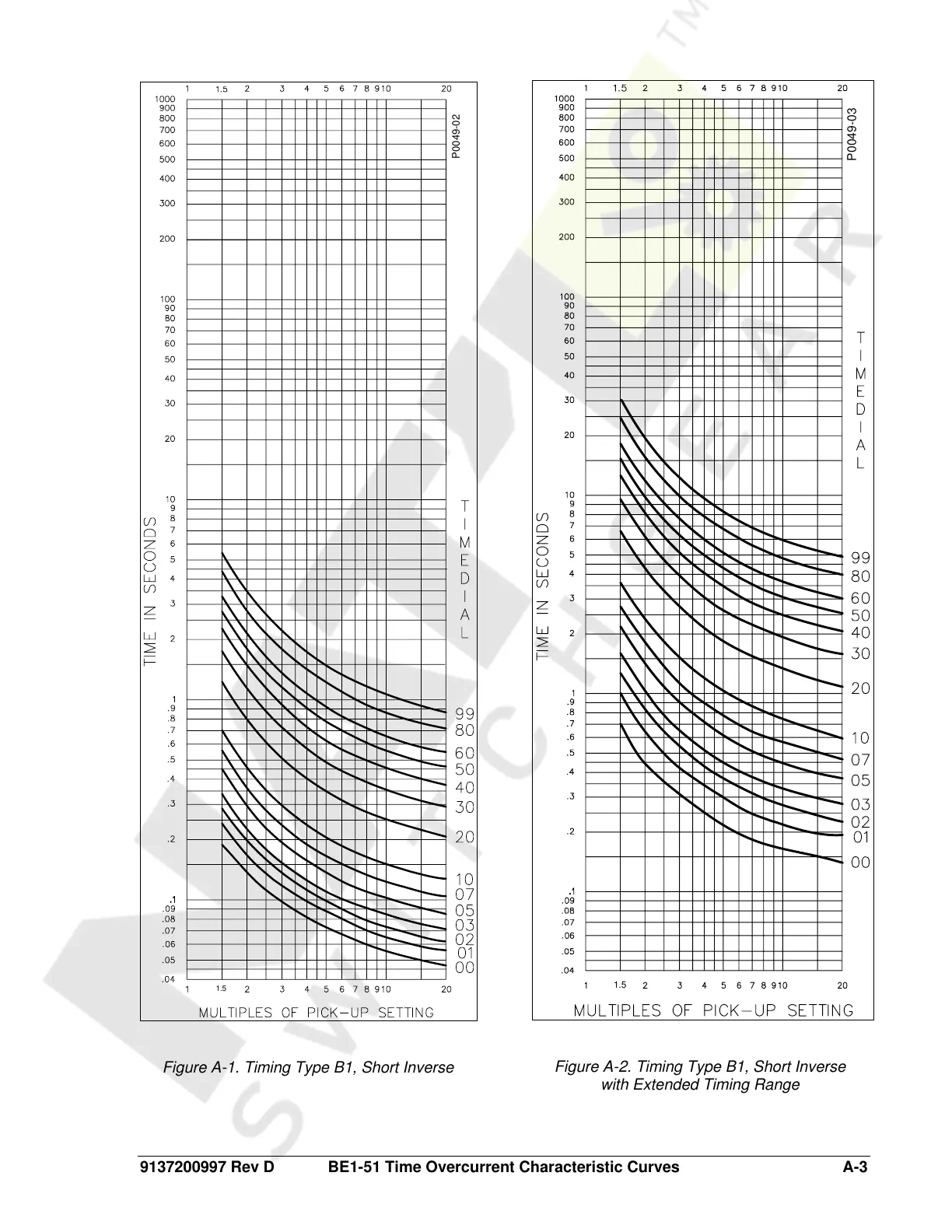

Figure A-1. Timing Type B1, Short Inverse
P0049-03
1.5
Figure A-2. Timing Type B1, Short Inverse
with Extended Timing Range
