A-8 BE1-51 Time Overcurrent Characteristic Curves 9137200997 Rev D
P0049-12

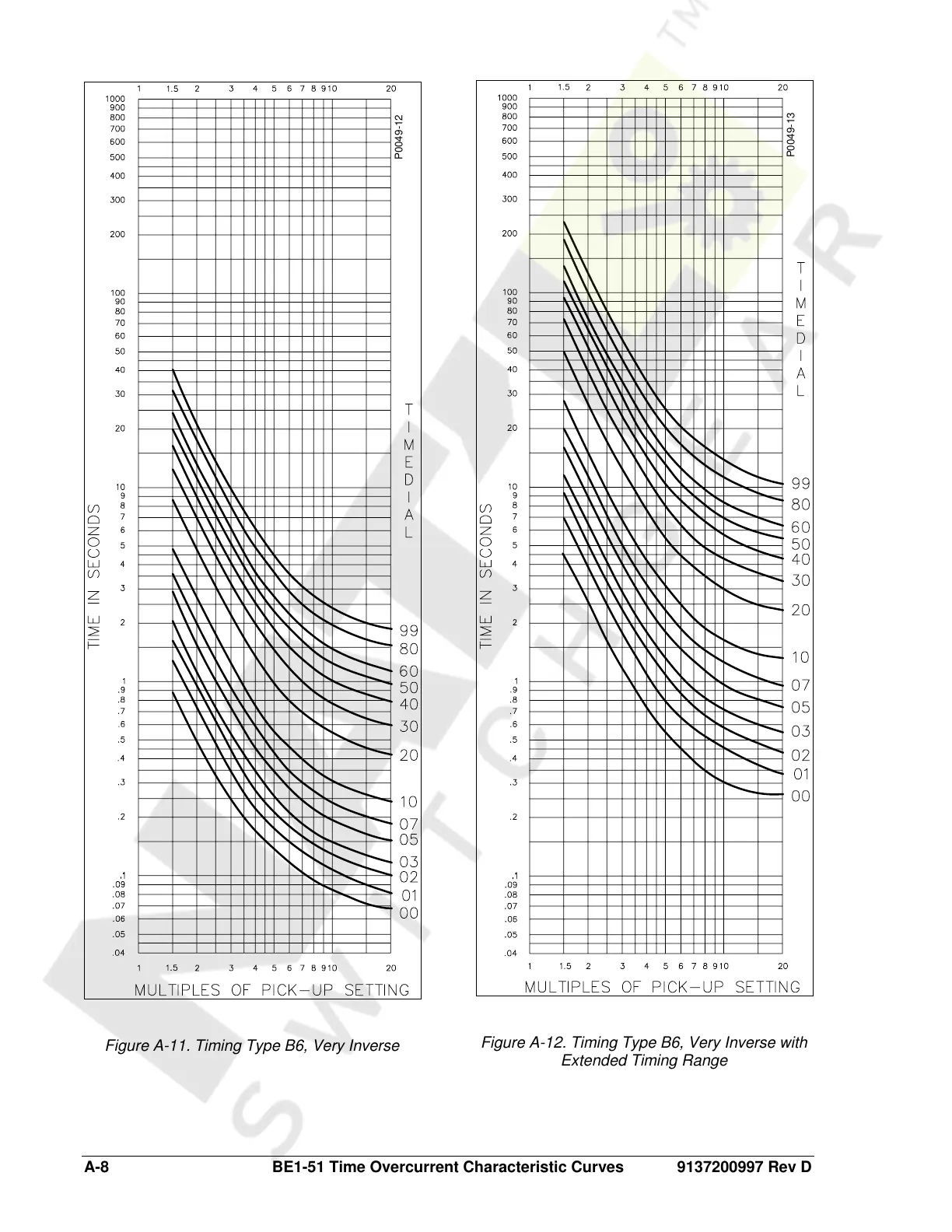

Figure A-11. Timing Type B6, Very Inverse
P0049-13
Figure A-12. Timing Type B6, Very Inverse with
Extended Timing Range
