A-16 BE1-51 Time Overcurrent Characteristic Curves 9137200997 Rev D
P0049-28

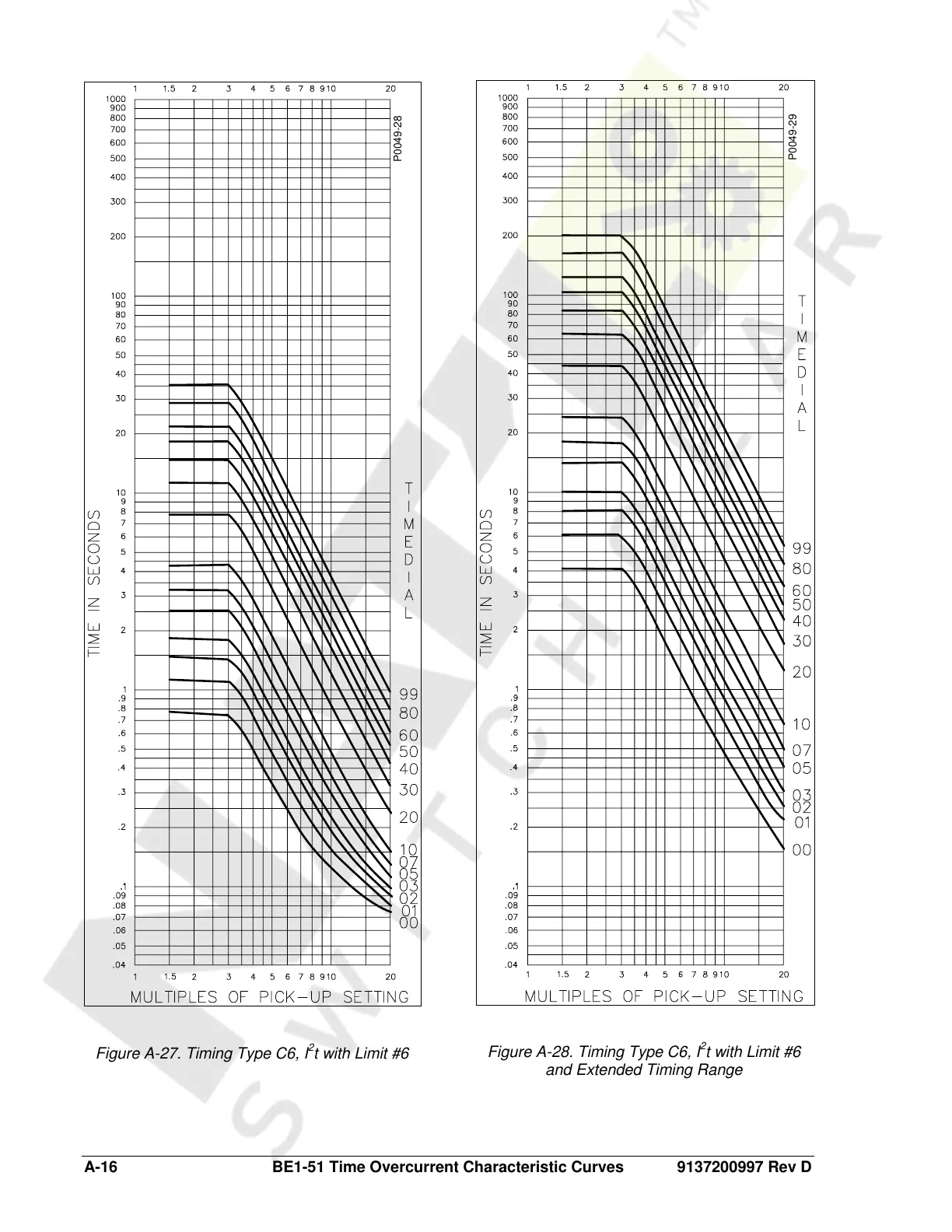

Figure A-27. Timing Type C6, I
2
t with Limit #6
P0049-29
Figure A-28. Timing Type C6, I
2
t with Limit #6
and Extended Timing Range
