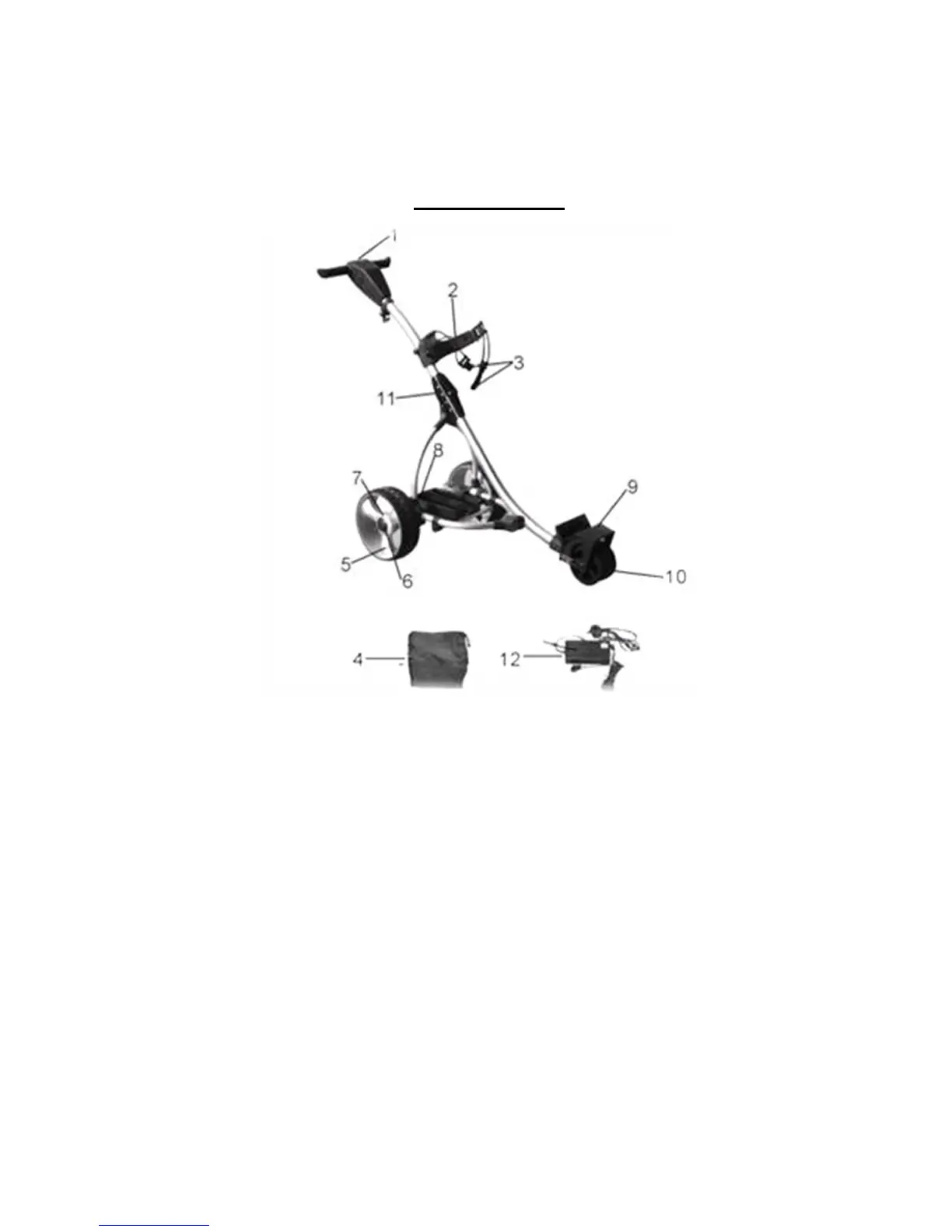

PARTS GLOSSARY
1. X3 & X3-LCD
1. T-Handle with Control Face Faceplate and Manual Speed Control
2. Upper Bag Support
3. Upper Bag Support Bungee Pigtails
4. Battery with Leads and Carrying Case
(12V 26Ah or 34/35Ah Sealed Lead Acid Deep Cycle)
5. Rear Wheels (Left & Right)
6. Wheel Hub with Locking Mechanism
7. Rear Wheel Rubber Tread
8. Battery Tray with Plug Receptacle
9. Lower Bag Support and Fender with Support Strap and Tracking Adjustment
Mechanism
10. Front Wheel
11. Frame Locking Hinge
12. 110-240V Charger (not shown)
