ASSEMBLY INSTRUCTIONS
1. X3/X3-LCD
1. Unpack all items carefully and check inventory.

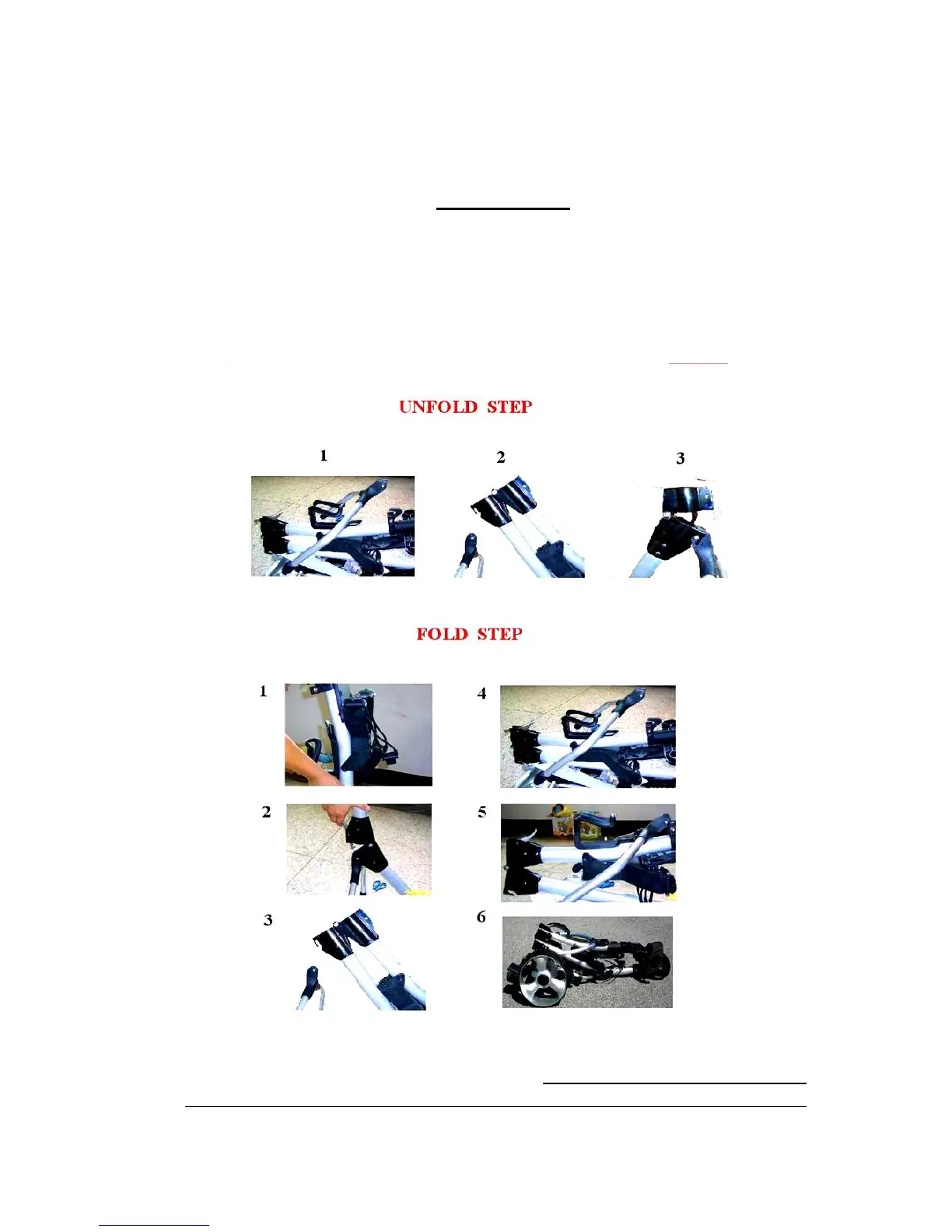

2. Place frame structure (one piece) on soft and clean ground to protect frame from
being scratched. Erect frame by unfolding and connecting the main frame tube
together at the joint and locking the Y-shape lower support structure to the main
frame with the frame lock mechanism.
3. Attach wheels to axles by pushing wheel locking button on the wheel hub and
inserting the axle extension into the wheel. Make sure to keep the locking
button on wheel hub pushed in during this process, in order to enable the
