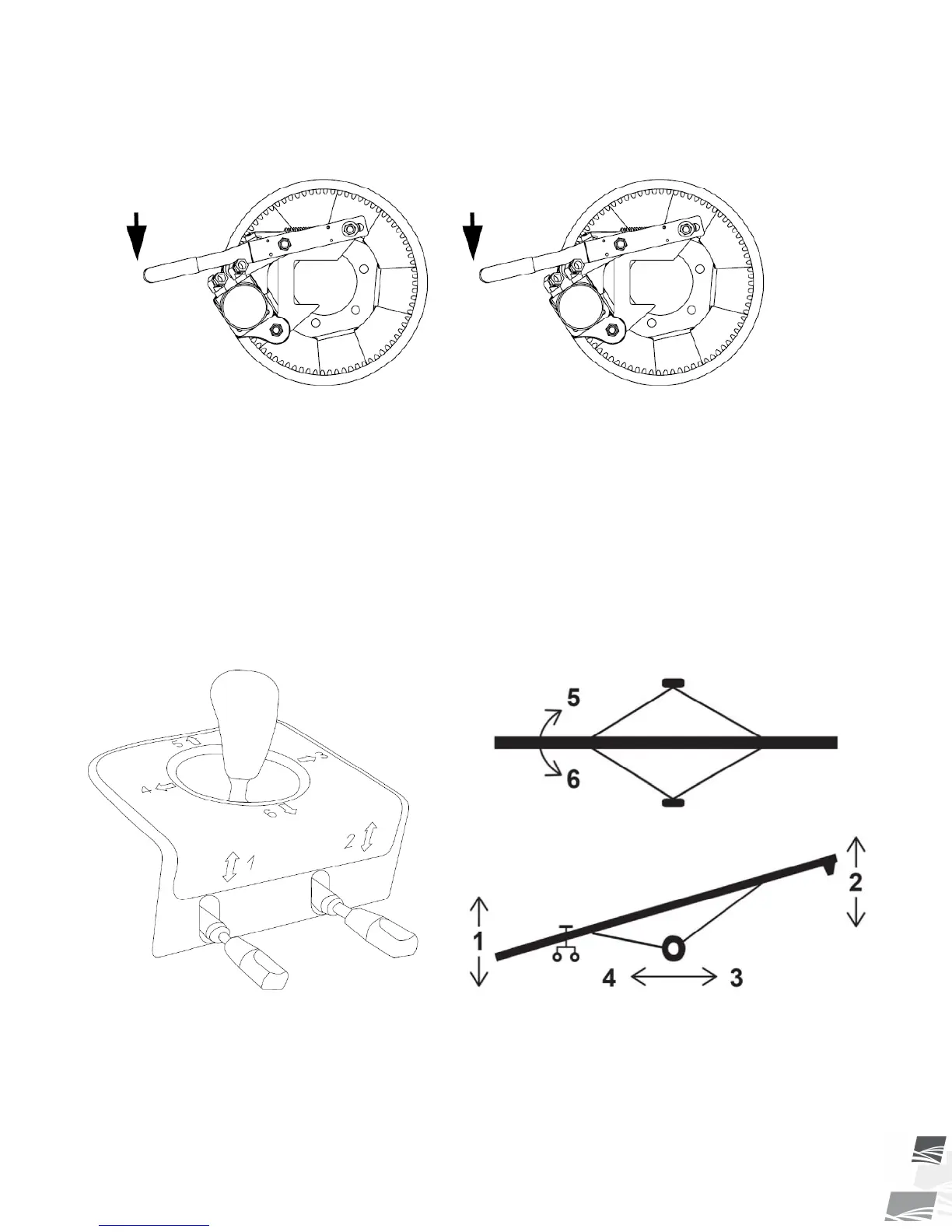

Figure 9. Wheel Over-Center Handle Positions
Engaged Disengaged
2. Set and run the gas engine at approximately half throttle.
3. Refer to the controls shown in Figure 10 on page 33.
4. Before moving the conveyor into position:
• Fully lower the conveyor.
• Raise the intake end slightly off the ground to position the conveyor.
• Raise the conveyor discharge end only for final positioning such as when next to a storage bin or grain
truck.
Figure 10. Mover Kit Controls
If Operating the Mover Kit in Temperatures Below -10°C (14°F):
• Disengage the pump when starting the motor cold. This will put less pressure on the starter and allow the
motor to turn over easier, helping it to start.
• Allow the hydraulic oil to warm before using the self-propelled kit.
PORTABLE GRAIN BELT CONVEYOR – S-DRIVE FIELD LOADER 4. PLACEMENT
