P1512120 R3 51

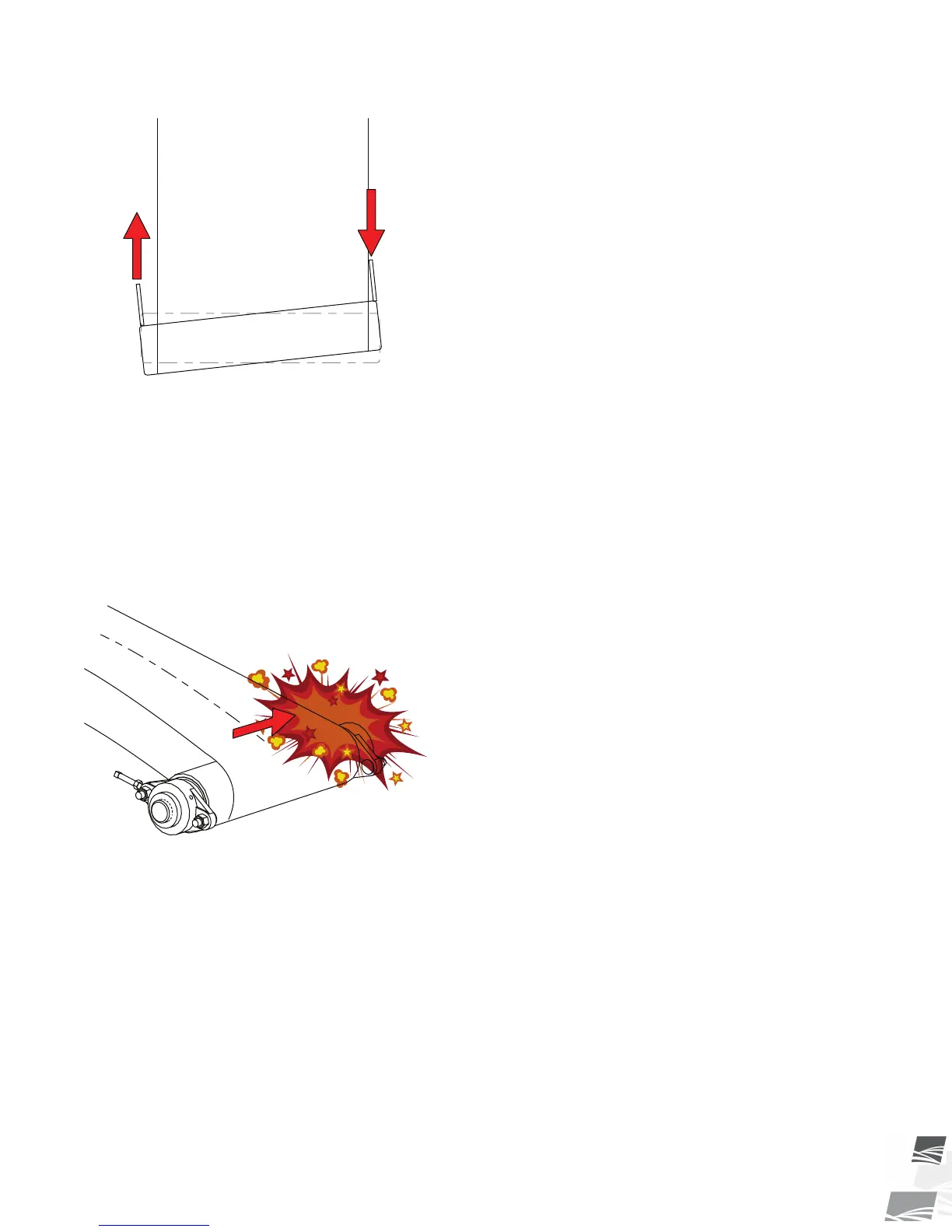

Figure 19. Roller out of Alignment
Before Aligning the Belt:
• The conveyor must be empty of all grain.
• Wait until the belt makes a complete revolution before adjusting the rollers. Some belts may have uneven
edges, appearing misaligned.
To Align the Belt:
If your belt is tracking off-center, follow the sections and steps in the order following to center it.
Figure 20. Belt Tracking to One Side
6.12.1 Adjust the Rollers
1. Loosen bearing nuts and jam nuts (if equipped).
PORTABLE GRAIN BELT CONVEYOR – S-DRIVE FIELD LOADER 6. MAINTENANCE
