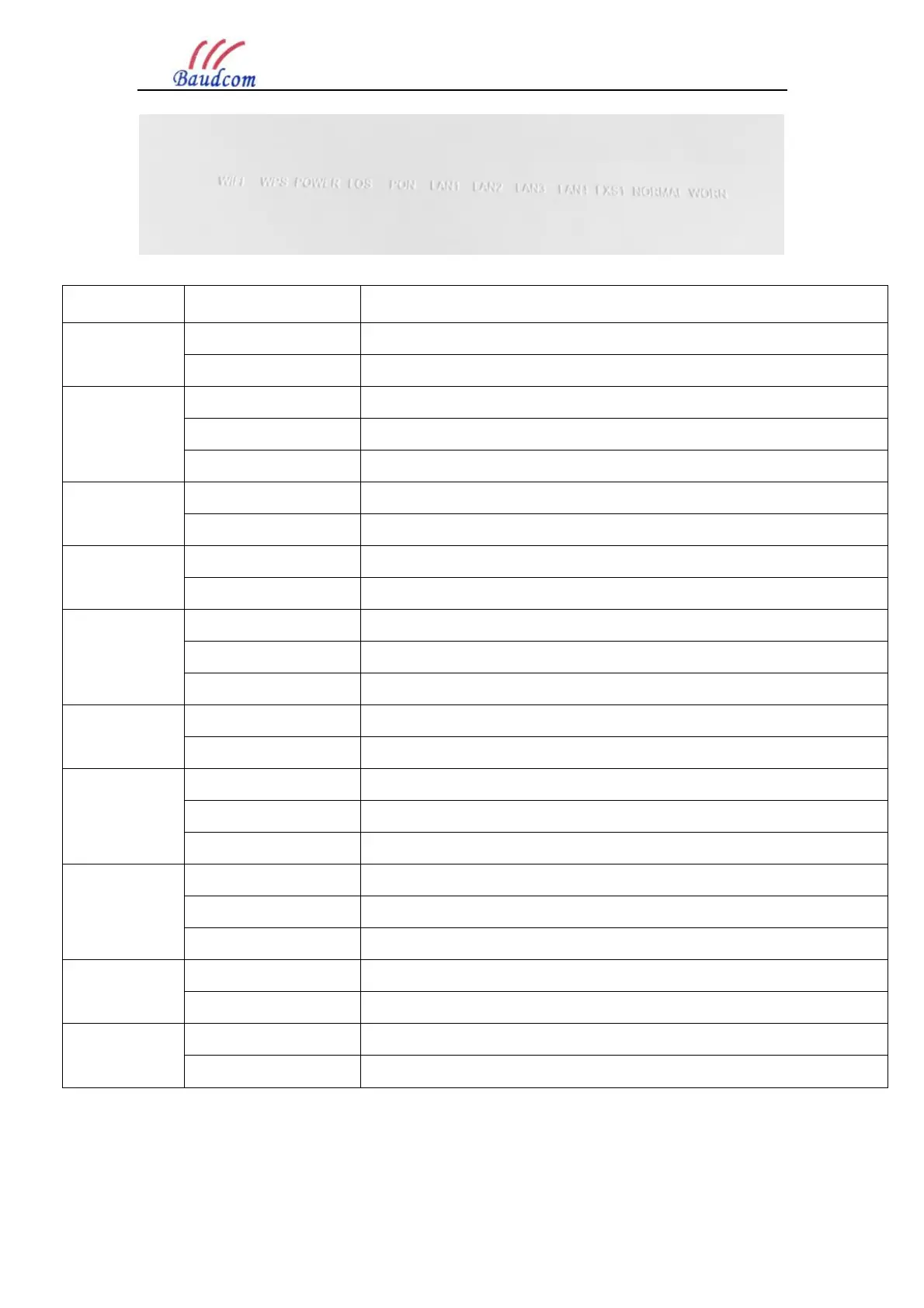

Figure 1-5: Led Panel
The device is powered up.
The device is powered down.
The device has registered to the PON system.
The device is registering the PON system.
The device registration is incorrect.
The device doses not receive optical signals.
The device has received optical signal.
The device system runs normally.
The device system runs abnormally.
The WIFI interface is up.
The WIFI interface is sending or/and receiving data (ACT).
The WIFI interface is down.
The WIFI interface is securely establishing a connection.
The WIFI interface does not establish a secure connection.
Phone has registered to the SIP Server.
Phone has registered and data transmission (ACT).
Phone registration is incorrect.
Ethernet connected properly (LINK).
Ethernet is sending or/and receiving data (ACT).
Ethernet connection exception or not connected.
Input optical power is higher than 3dbm or lower than -13dbm
Input optical power is between -13dbm and 3dbm
Input optical power is between -13dbm and 3dbm
Input optical power is higher than 3dbm or lower than -13dbm
Table 2: Panel Lights Description
