Page 5For technical questions, please call 1-800-444-3353. 70757
SAFETYOPERATIONMAINTENANCE SETUP
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the appliance off and unplug the appliance from its
electrical outlet before performing any procedure in this section.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Assembly
Note: Dust Collector will require complete assembly
prior to use. It is important to read the entire manual
to become familiar with the product BEFORE
using the Dust Collector. Before assembling
Dust Collector be sure that you have all parts
described in the Parts List and Assembly Diagram.

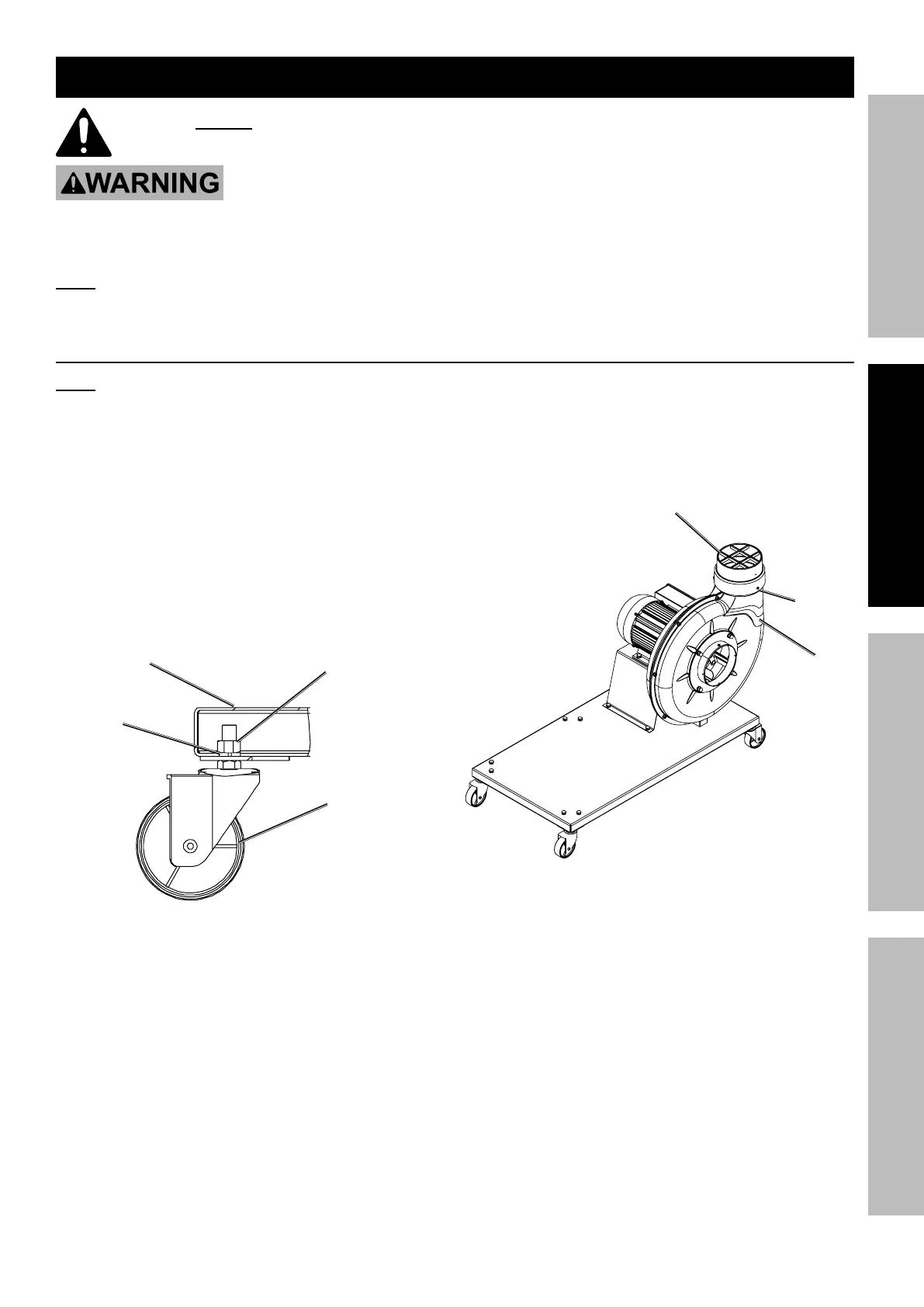

1. Keep each Caster type together on the same
side of Base Plate. Slide Caster (4 or 11) threads
through corner hole on underside of Base Plate (1).
Slide Washer (3) over Caster threads, thread
Nut (2) onto Caster threads and tighten to secure.
Repeat for remaining Casters. (See Figure A.)
Nut (2)
Caster (4, 11)
Washer
(3)
Base
Plate (1)
Figure A: : Caster Install
2. Set Base Plate down with Casters on
the ground. (See Figure B.)
3. Attach Outlet (49) to Impeller Housing (47)
using Screws (27). (See Figure B.)
Impeller
Housing
(47)
Outlet
(49)
Screw
(27)
Figure B: Motor Assembly Install
To Next Page
