Note: There are two Nuts welded to the Base Plate
for the Stand (36) nearest to the Motor.
4. Line up Stand (36) with holes on edge of Base Plate.
Secure loosely with Bolts (33) and Nuts (10).
Repeat for remaining Stand. (See Figure C.)
Note: Do not fully tighten Bolts at this stage.
Bolt (33)
Stand
(36)
Nut (10)

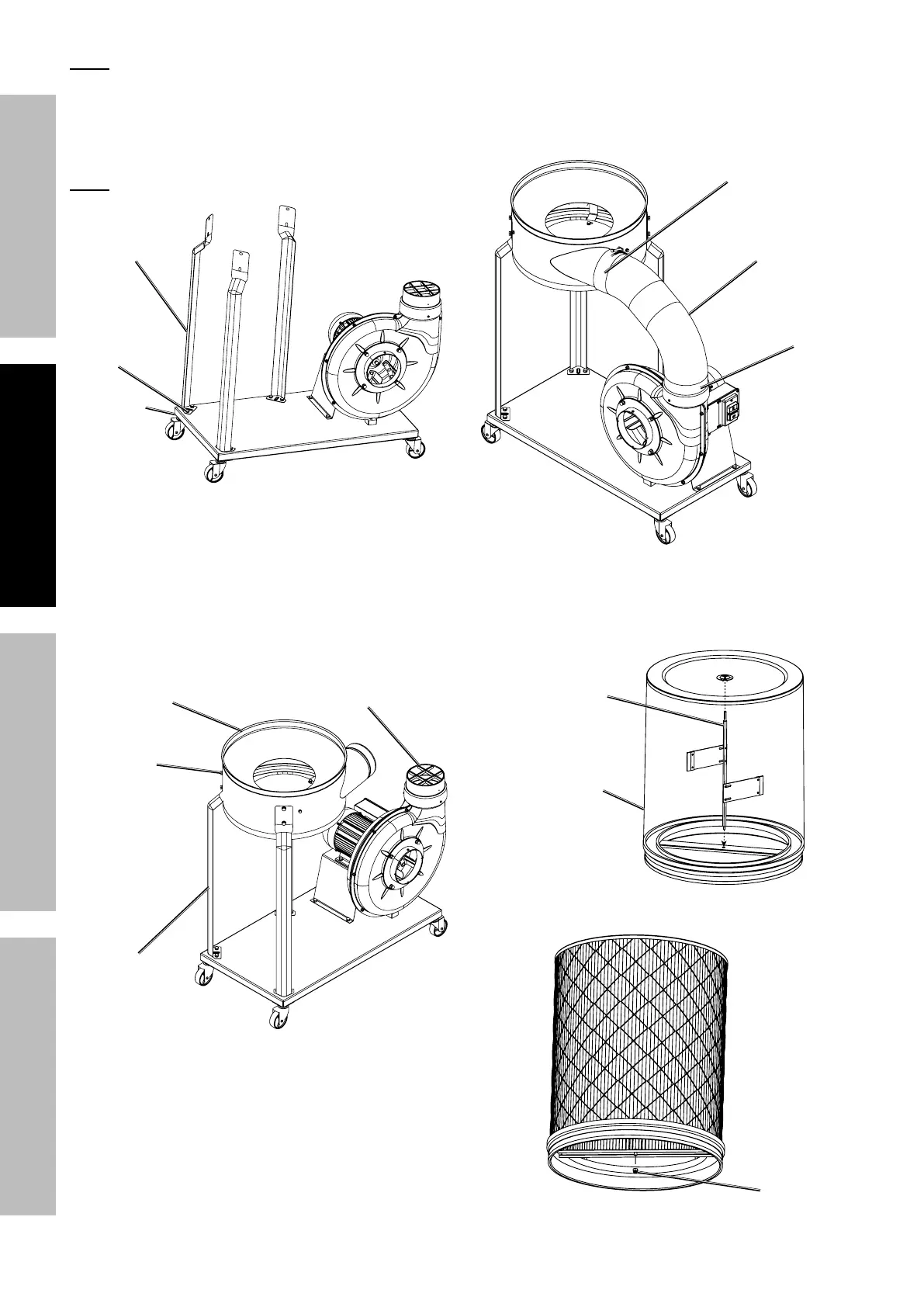

Figure C: Stand Install
5. Remove Bag Retainer (31) from
Collector (40) and set aside.
6. Connect Collector (40) to Stand (36),
thread Bolts (37) through Stand and
secure with Nuts (5). (See Figure D.)
7. Fully tighten all fasteners on Collector and Stands.
Collector
(40)
Stand
(36)
Bolt (37)
Nut (5)
Outlet
(49)
Figure D: Collector Install
8. Slide Hose Clamp (41) onto Hose (42). Slide
Hose onto the Outlet (49). Once Hose is in
place, tighten screw on Hose Clamp until Hose
is securely fastened to Outlet. Repeat for other
end of Hose to Collector. (See Figure E.)
Hose Clamp
(41)
Hose
(42)
Hose Clamp
(41)
Figure E: Hose Install
9. Insert longer end of Scraper Assembly through
mounting hole at top of Filter (38). Insert Shorter
end through mounting hole at bottom of Filter.
Scraper
(53)
Filter
(38)
10. Secure shorter end of Scraper with Nut (55).
Nut
(55)
To Next Page
