34
djusting the position of the plinth
ou can make an adjustment to the position and height of the plinth if
equired, by following the process below:-
o
o left and
o height
A
Y
r

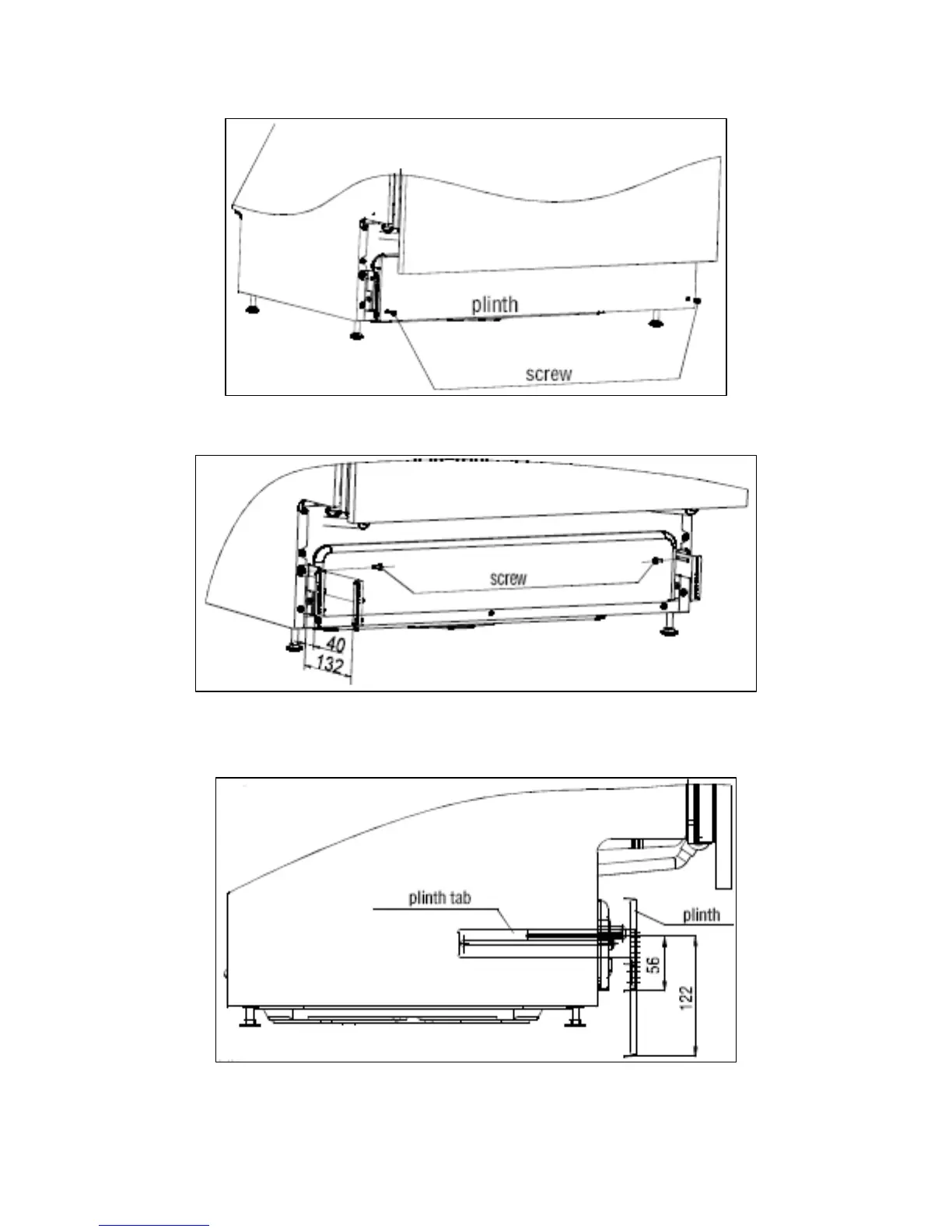

Unscrew the two screws and remove the plinth from the
dishwasher.
Use the two screws to adjust the distance between the
right hand plinth tabs. The gap can be adjusted between 39 mm
and 134 mm.
Fix the plinth on the plinth tab and then adjust the plinth
according to your needs. You can adjust the height of the plinth
between 56 mm to 122 mm.
