Supply connection: 13 A (double pole switched fused outlet with
3 mm contact gap)

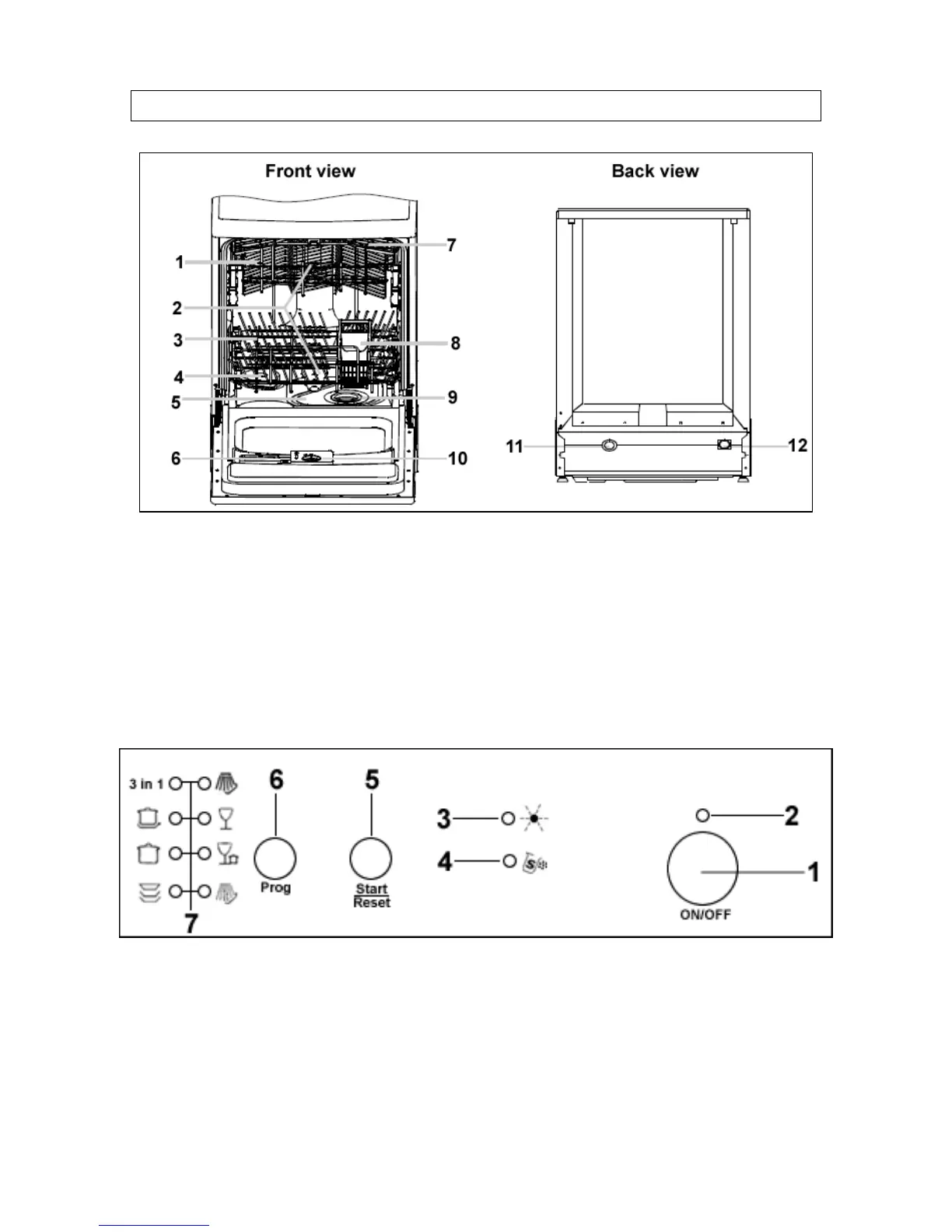

Description of the appliance
1) Upper basket 7) Cup shelf
2) Spray arms 8) Cutlery basket
3) Lower basket 9) Coarse filter
4) Water softener 10) Rinse aid dispenser
5) Main filter 11) Drain pipe connector
6) Detergent dispenser 12) Inlet pipe connector
Control panel
1) ON/OFF button 4) Salt required warning
light 2) Power on neon
3) Rinse aid required 5) Start/Reset button
warning light 6) Program selection button
7) Program indicator light
9
