22

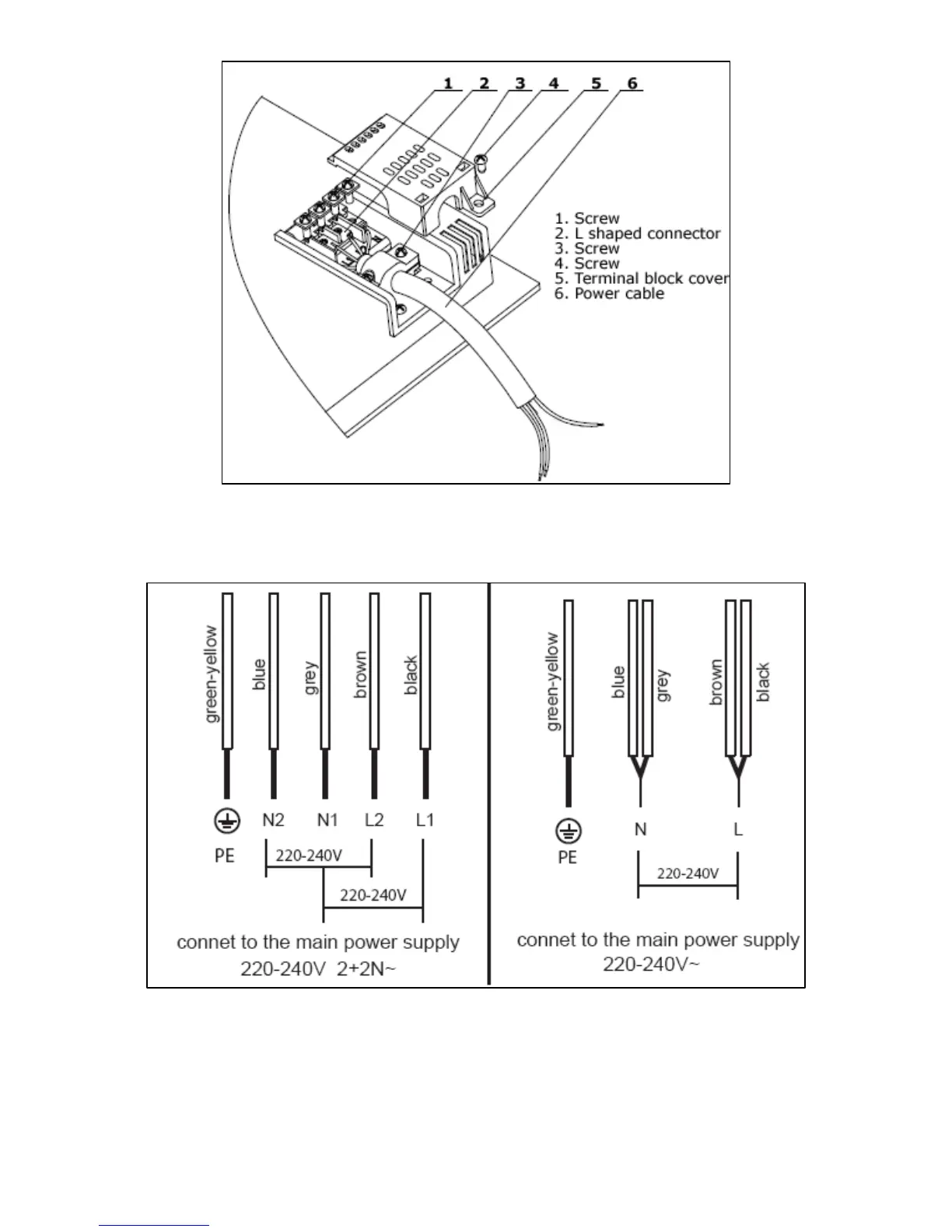

Connecting the mains supply cable
o The mains terminal block is located on the underside of the hob
and the terminals are accessible by removing the terminal block
cover by removing the cover screw.
o The cable connections must be in accordance with the diagram
located on the bottom of the hob (see above).
o You should use a good quality screwdriver to carefully, fully
tighten ALL of the terminal screws.
