Baumatic BMC255SS - Fitting the Microwave into Cabinet; Attaching Mounting Brackets; Securing Microwave in Housing

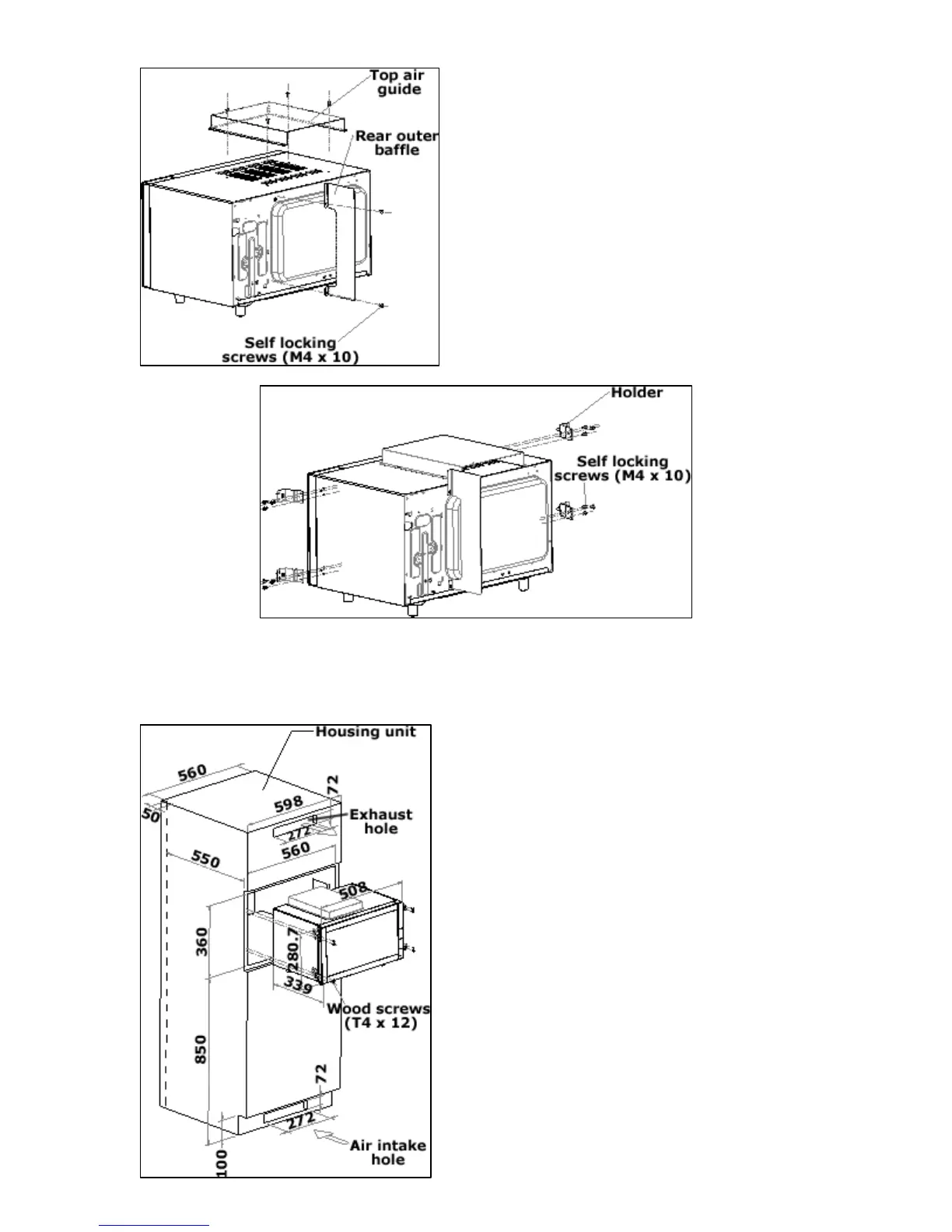

Installing the microwave into the housing unit
o Secure the top air guide onto
the top of the microwave
housing (as shown in the
diagram opposite).
o Secure the rear outer baffle
onto the back of the microwave
housing, using the 6 x self
locking screws (as shown in the
diagram opposite).
o Secure the holders onto each side of the microwave housing,
using the 12 x self locking screws (as shown in the diagram
opposite).
o Place the microwave into the
housing unit and then fix it into
position using the 8 x wood
screws (as shown in the diagram
opposite).
