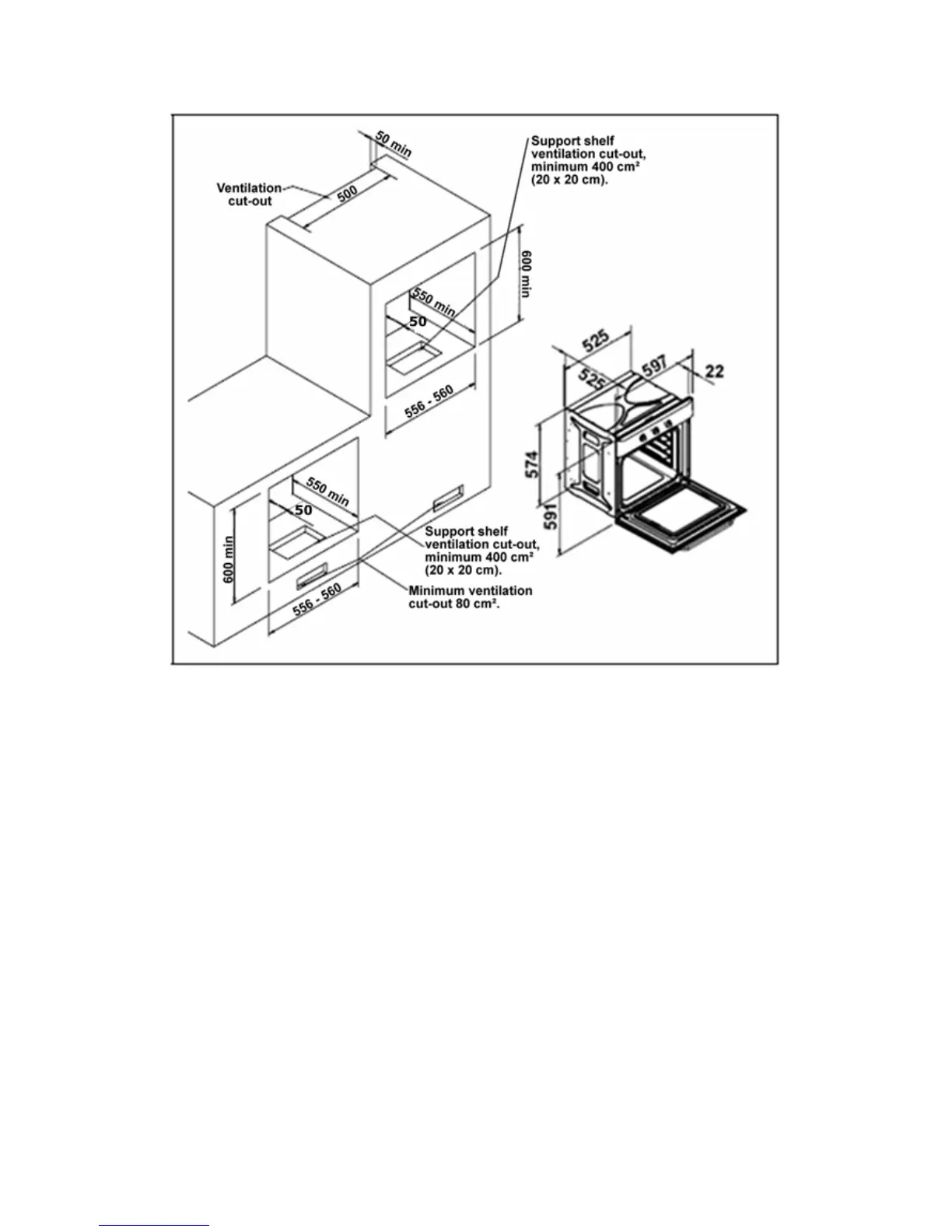

Ventilation requirements
o You should remove the rear panel of the housing unit before
attempting to install the oven.
o A minimum ventilation gap of 50 mm must be allowed between
the rear of the support shelf and the rear of the housing unit.
o A 400 cm² (20 x 20 cm) ventilation cut out must be made in the
support shelf.
o A minimum ventilation area of 80 cm² must be allowed below
the appliance.
o If the appliance is to be installed in a Leisure Accommodation
Vehicle, the requirements of EN 721 must be applied.
