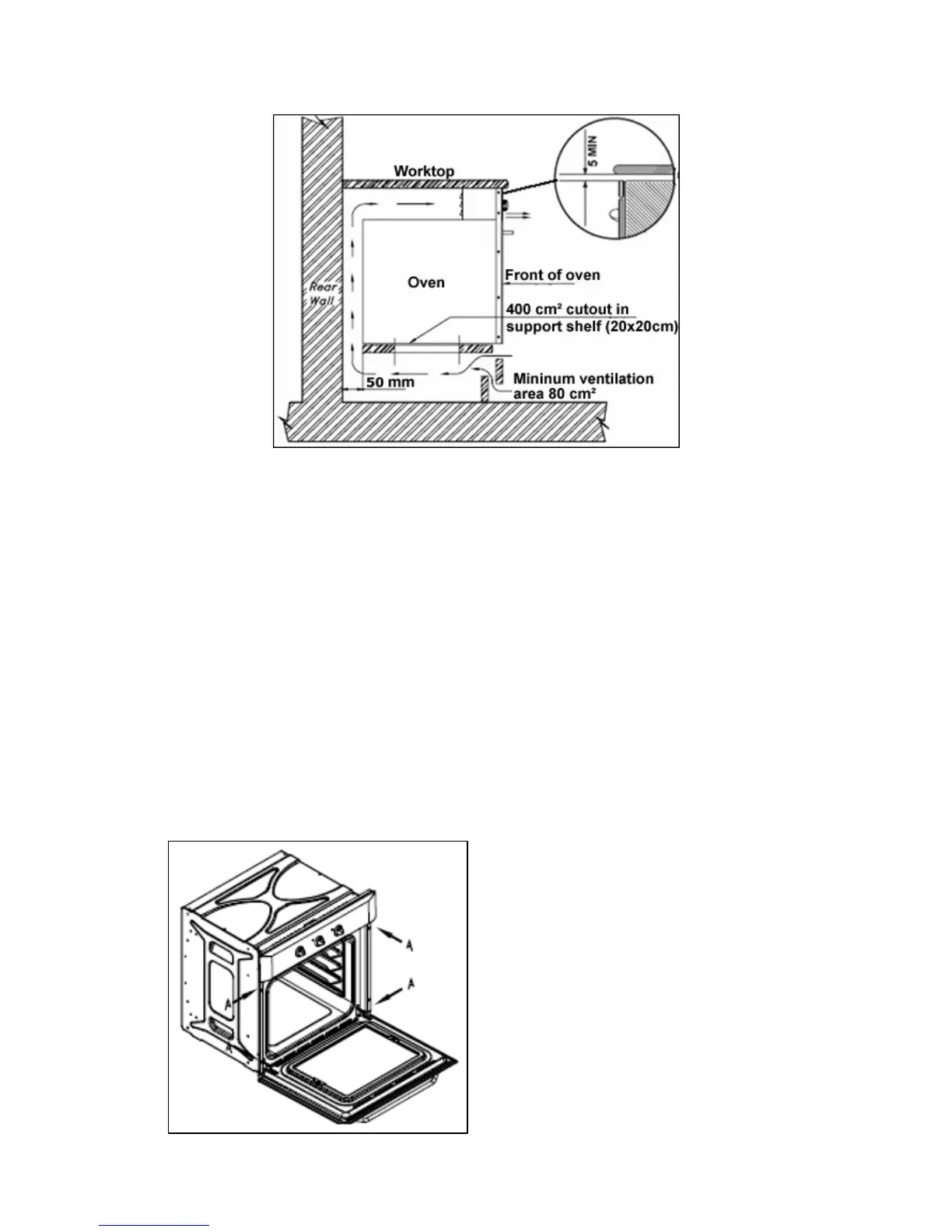

Additional built under ventilation requirements
o Remove the horizontal strengthening support at the upper front
housing unit.
o If your housing unit incorporates a domestic lower drawer, this
must be made non-functioning with a ventilated false front.
o A 5 mm ventilation gap must be allowed between the top of the
appliance and the underside of the worktop.
Additional tall housing ventilation requirements
o A 500 x 50 mm cut out must be made in the top of the housing
unit, the plinth and any other additional shelves apart from the
support shelf.
o If the unit is fitted flush with the kitchen ceiling, a 20 cm²
ventilation cut out must be made in the top front of the housing.
o For both types of
installation, ensure that the
oven has been securely fixed
into the housing unit. The
fixing of the oven into the
housing is made by using
four screws. These should be
screwed through the oven
cabinet and into the housing
unit.
