Substituting the main oven injector
o Open the door of the lower cavity
fully.
o Remove the oven burner shield
from inside of the oven.

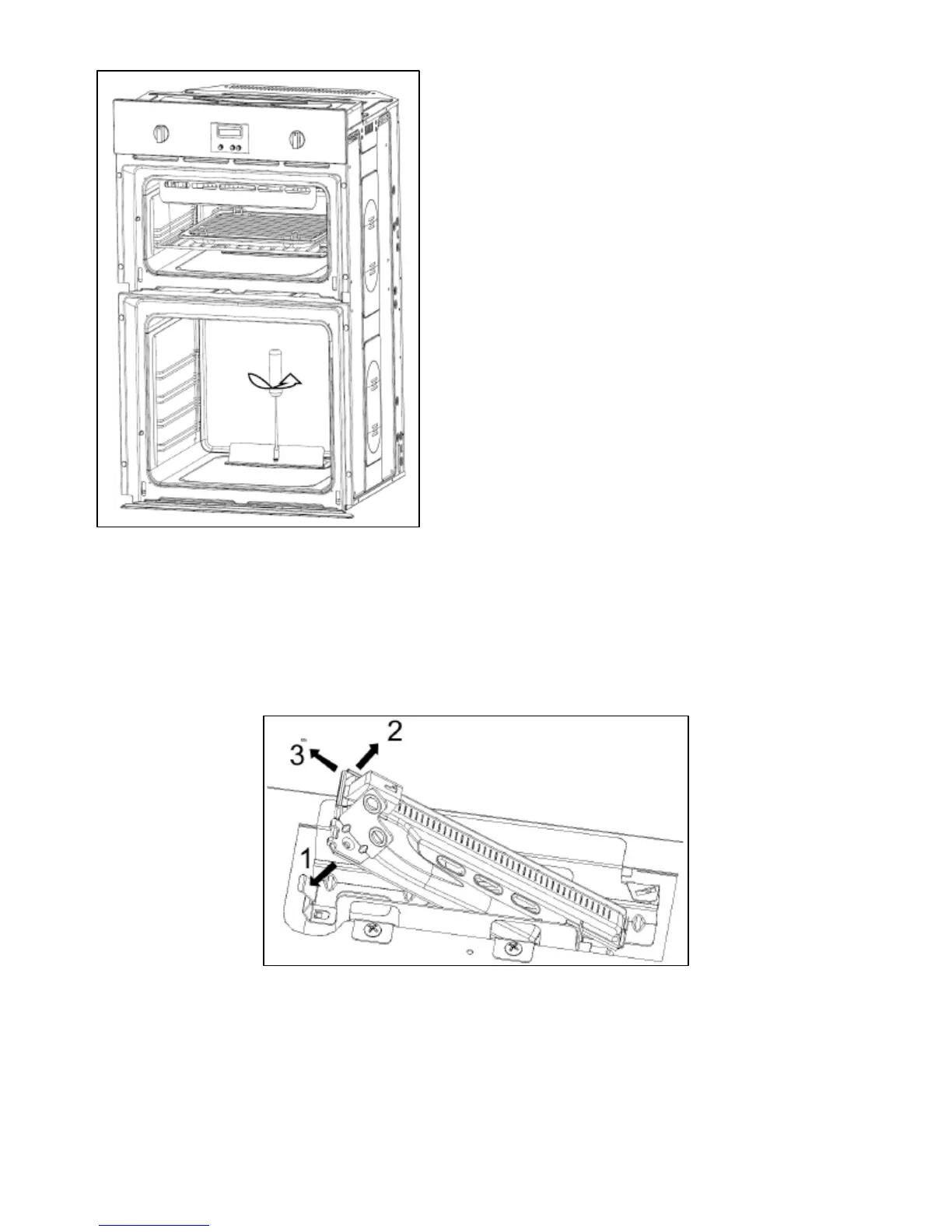

o Remove the burner by moving the restraint spring to the left and
sliding the burner out of its housing. In order to slide it out, lift
up the left side and then slide it over to the left. In doing so,
take care not to change the position of the igniter and safety
device which are attached to the burner.
o Unscrew and remove the injector. Replace with the injector
which corresponds to the new gas type (please refer to the table
above). It is recommended that the appropriate thread sealant is
used; always check for gas tightness after assembly.
