Baumatic BO796BL - Installation Between Side Panels and Cabinet

31

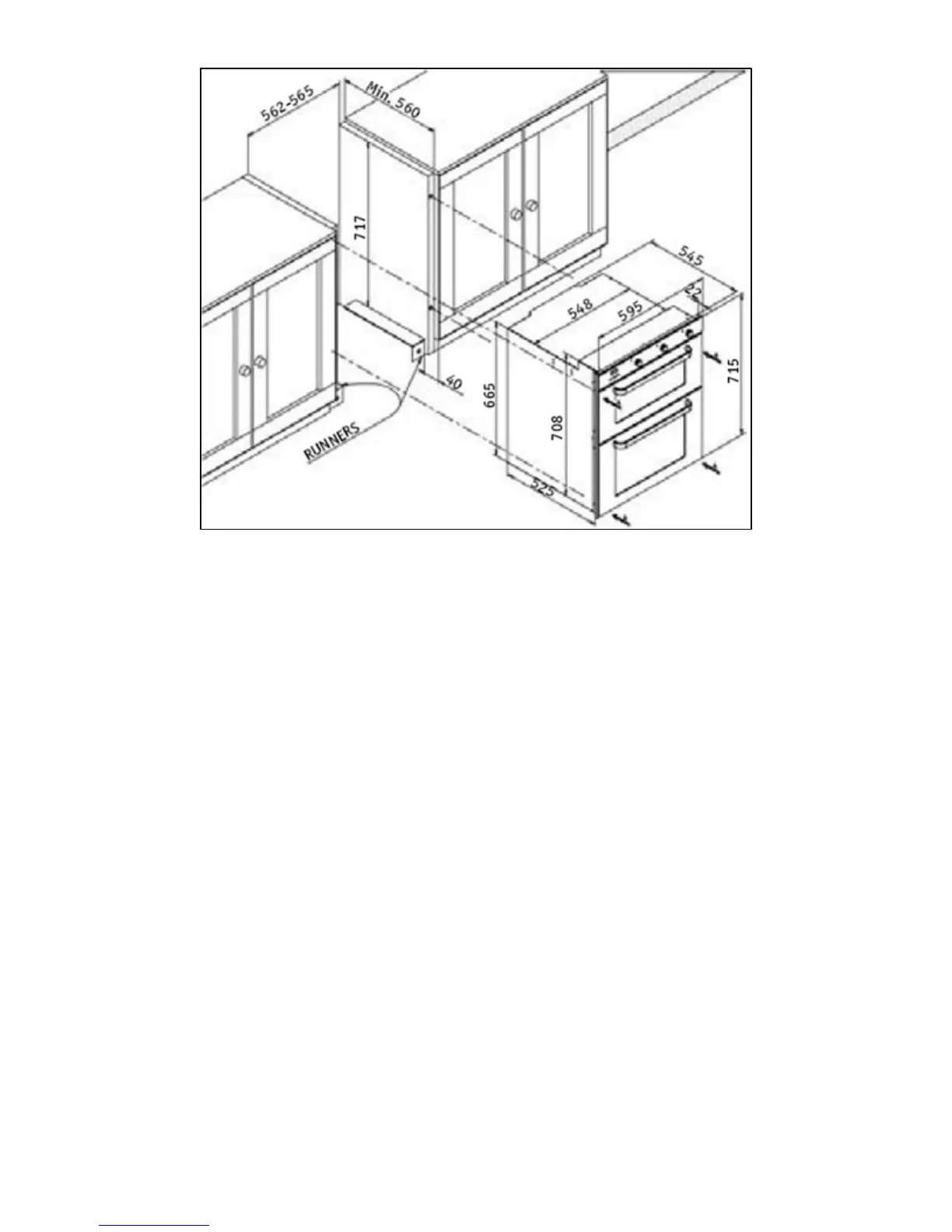

Installation between two side panels and one cabinet unit
o Measure a distance of 717 mm from the underside of the work
top and mark the position of the lower support brackets.
o Fix the lower support brackets in this position to the side panels
of the cabinet unit. They need to be positioned 40 mm back from
the front edge of the side panels.
o Gently slide the oven back onto the lower support brackets and
fix the oven to the front frame of the cabinet by using the four
screws provided.
