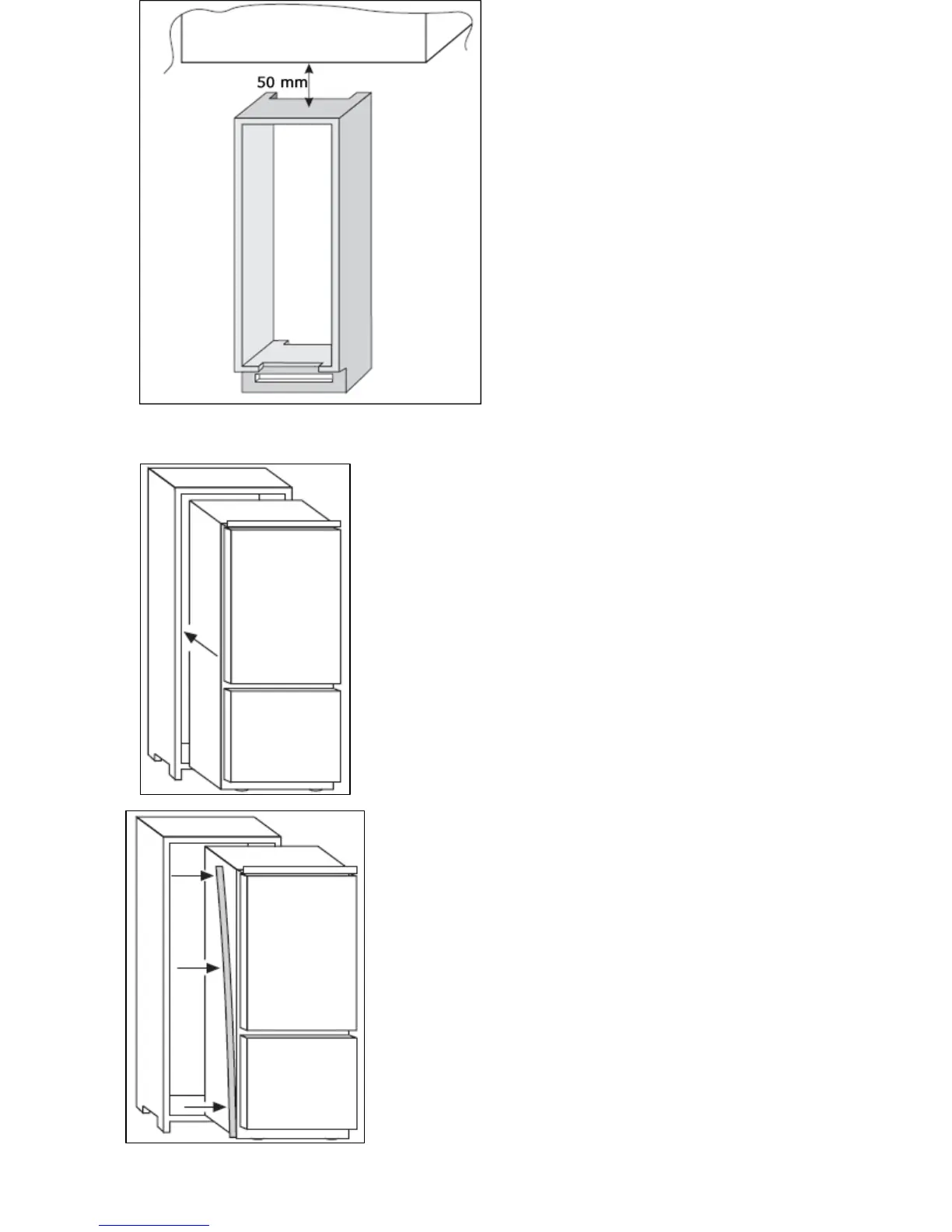

o The diagram on the left
shows the minimum gap
which should be left
between the top of the
housing unit and the ceiling
to allow sufficient
ventilation.
Installing your fridge freezer
o Insert the appliance into the housing
unit, leaving a 5mm gap for the gasket
on the opposite side of the hinges.
27
o Fasten the gasket provided into the
5mm gap left opposite the hinges, as
outlined in the step above.
