Baumatic BRT200 - Page 24

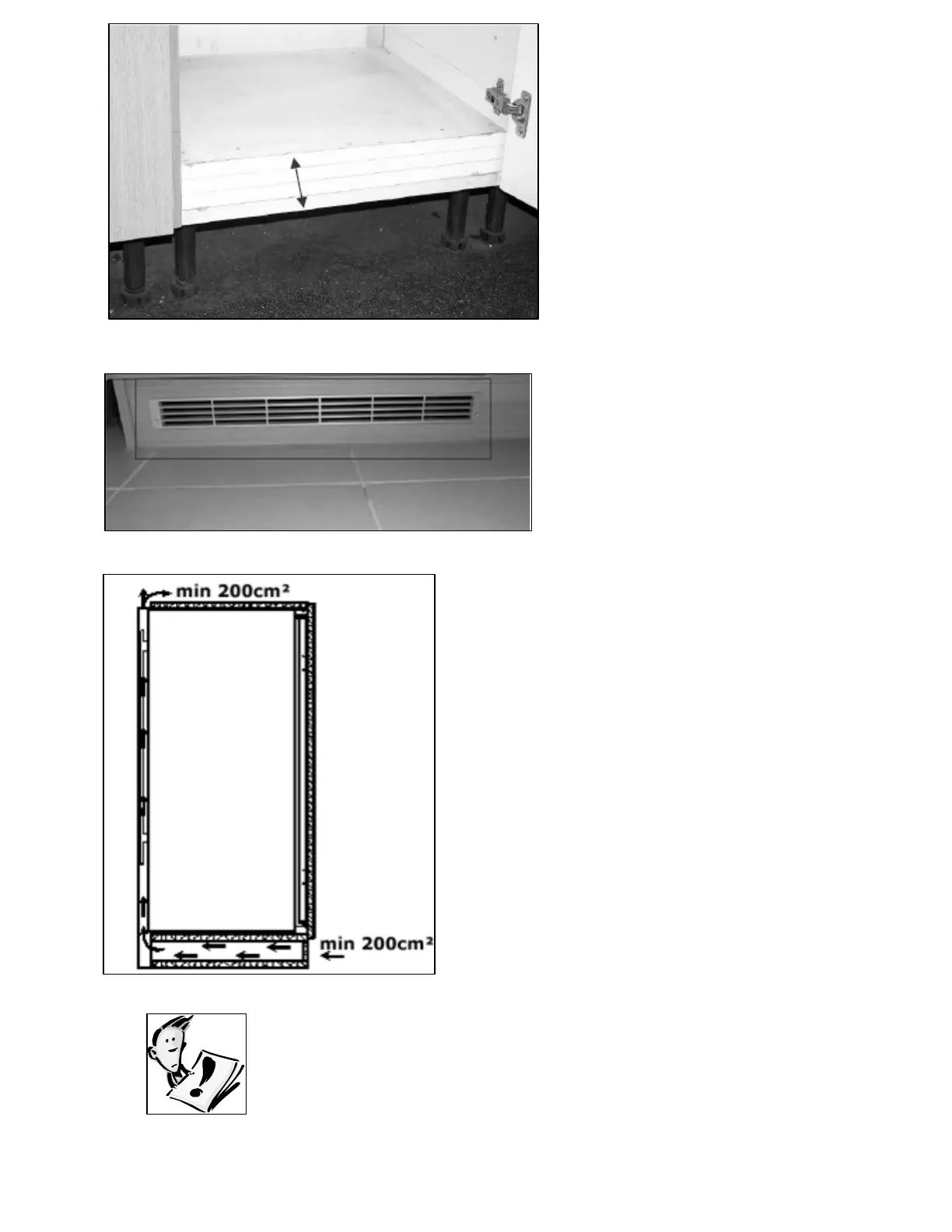

The height of the aperture
needs to be between 1445
- 1465 mm.
o If required use filler
shelves to occupy
any additional space
that you have in the
aperture (as shown
in the picture
opposite).
o IMPORTANT: The
appliance aperture
MUST have a
minimum of 200 cm²
free air flow for
ventilation. This
ventilation is required
for the appliance to
work properly.
The amount of ventilation that is required is
shown in the diagram above.
24
