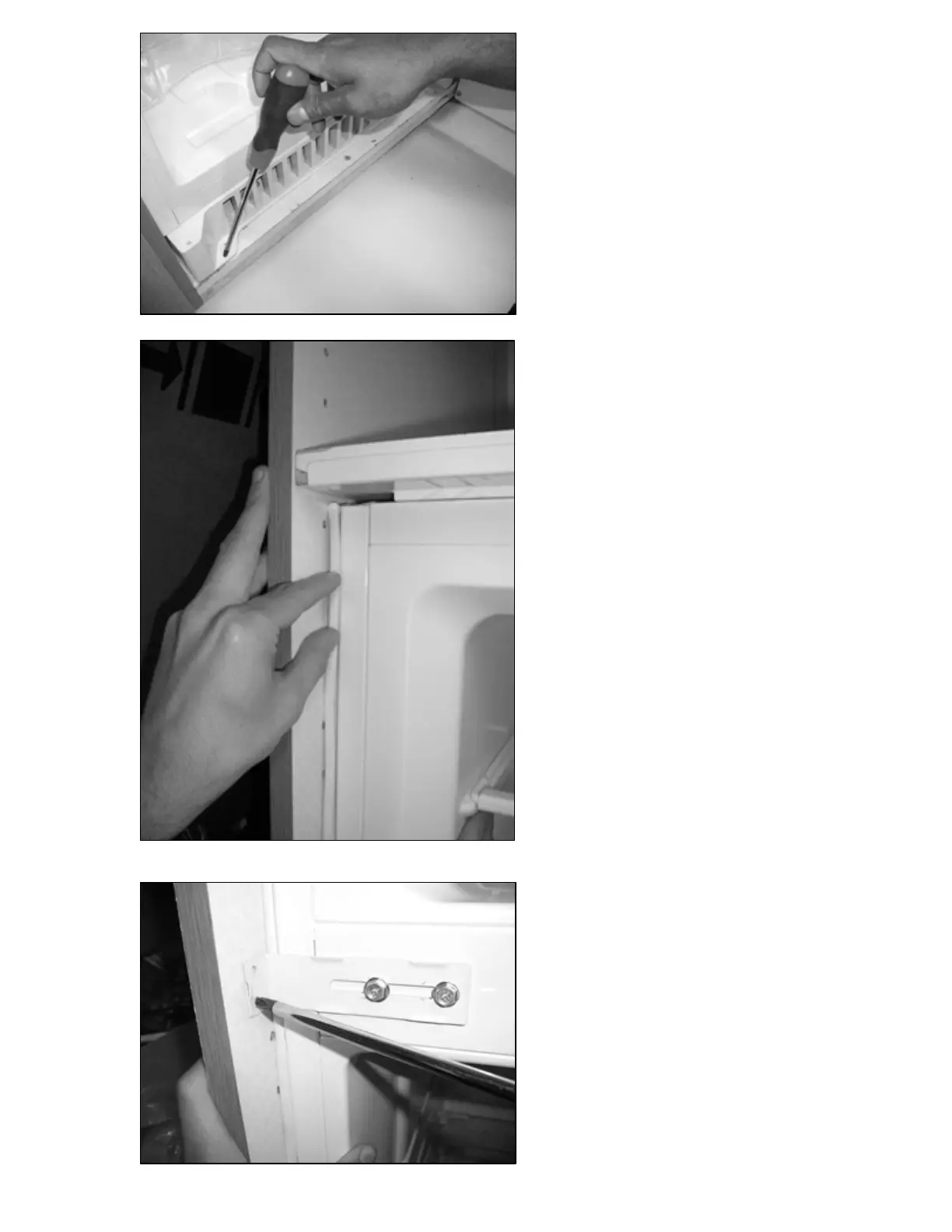

c) Fix the lower hinge
receivers to the base of
the housing unit (as
shown in the picture
opposite).
d) Once the appliance is in
position, trim the filler
gasket provided with
the fixing kit to an
appropriate size and
then insert it into the 5
mm gap that you left in
step a).
e) Slide the left hand
centre bracket towards
the housing unit and
then fix it to the side
wall of the housing unit
(as shown in the
picture opposite).
26
