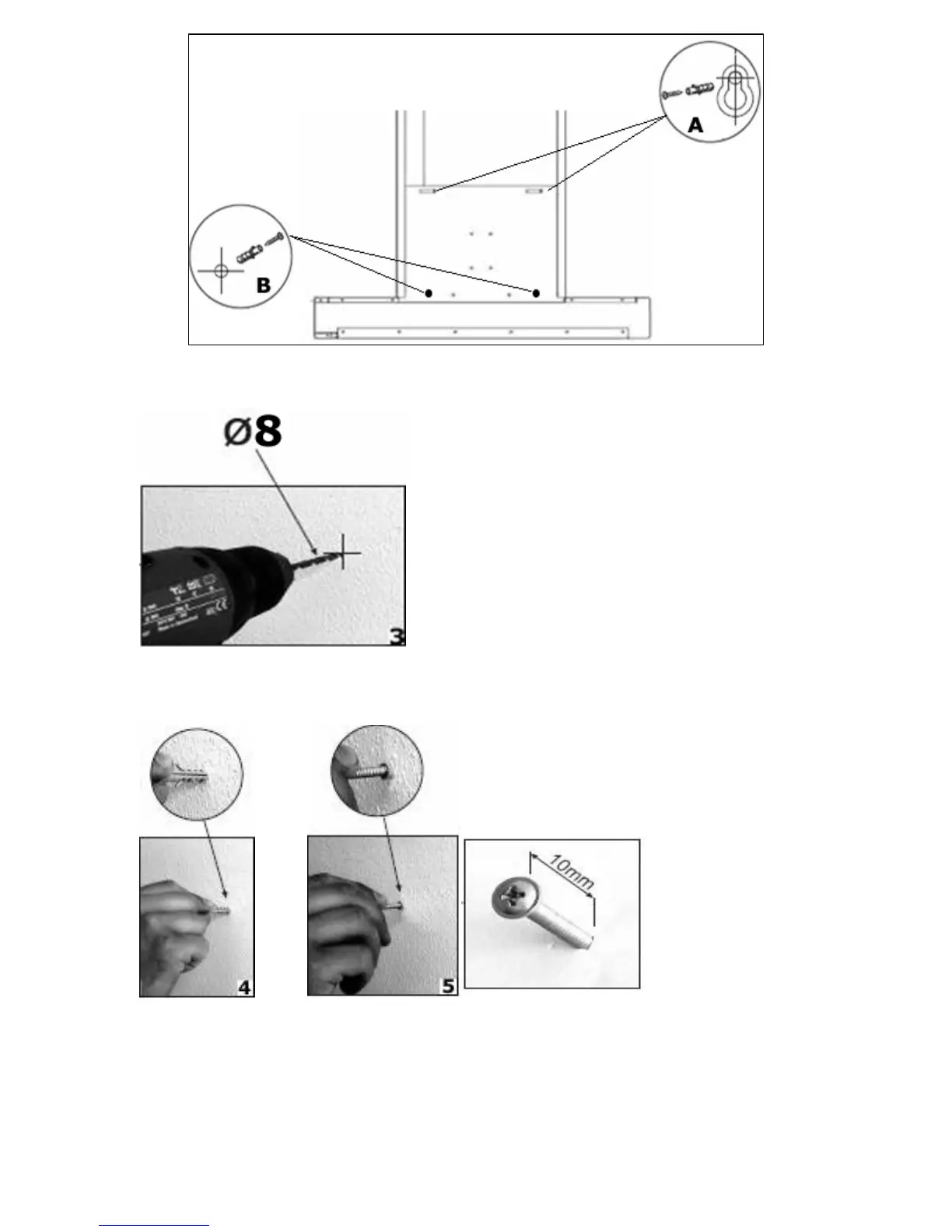

a) The support screw holes are indicated by figure A in this drawing
nd the anchoring screw holes are indicated by figure B.
) Using a drill bit with a 8 mm
iameter, make holes in the wall on the
ositions that you have marked in step
4) Insert raw plugs into all of the holes that you have drilled.
5) Fasten the support screws halfw y in, leaving them 10 mm out of
2
a
3
d
p
2.
a
the wall.
19
