30

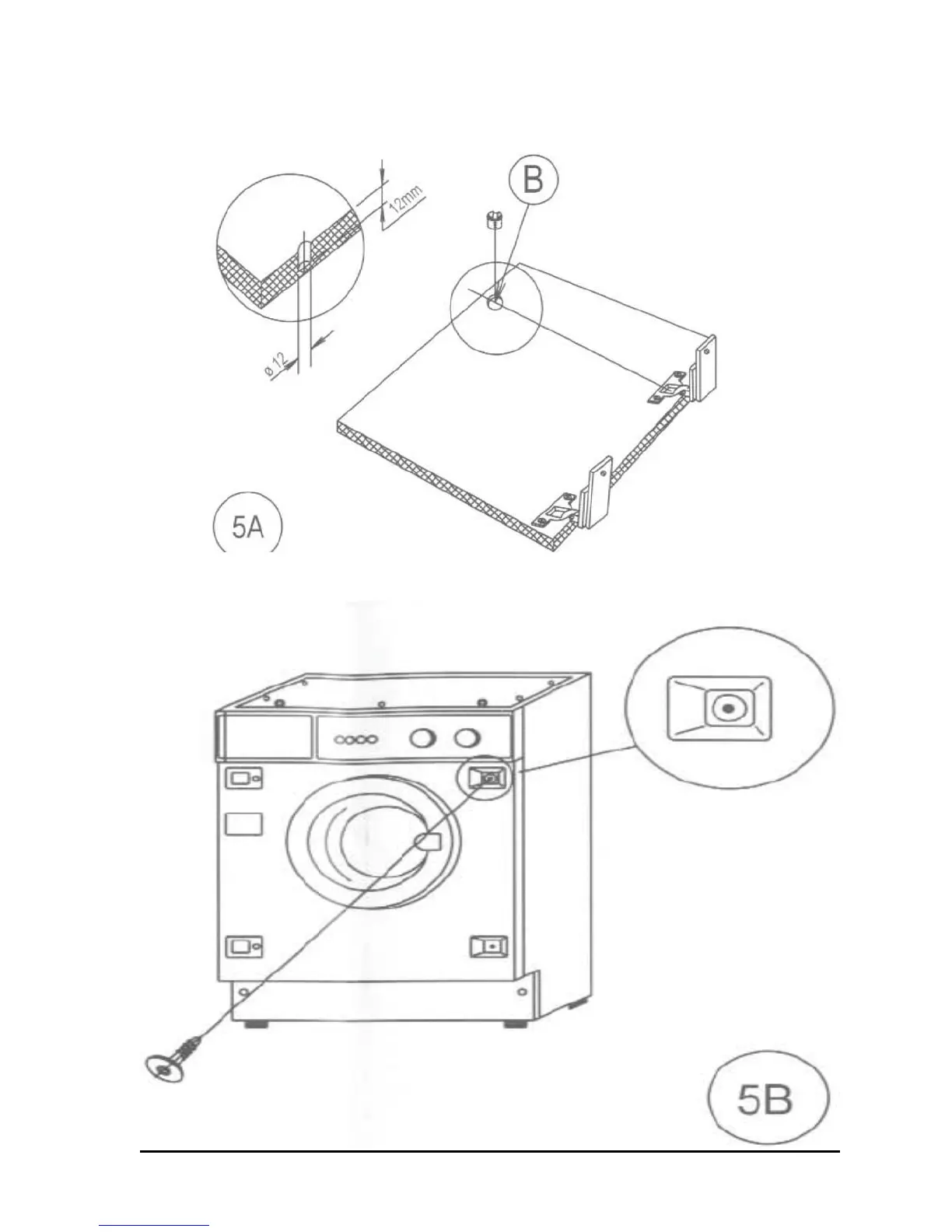

If you want the décor door to open to the right, take a 1.2mm drill bit &
make a hole as shown in the illustration below. ‘B’ (pictured below) is a
door magnet.
Now you will need to fit the anchoring lugs, screwing each one in as
shown in the illustration below.
