o Also before installing the tumble dryer, you will
need to install the plastic washer on the rear of

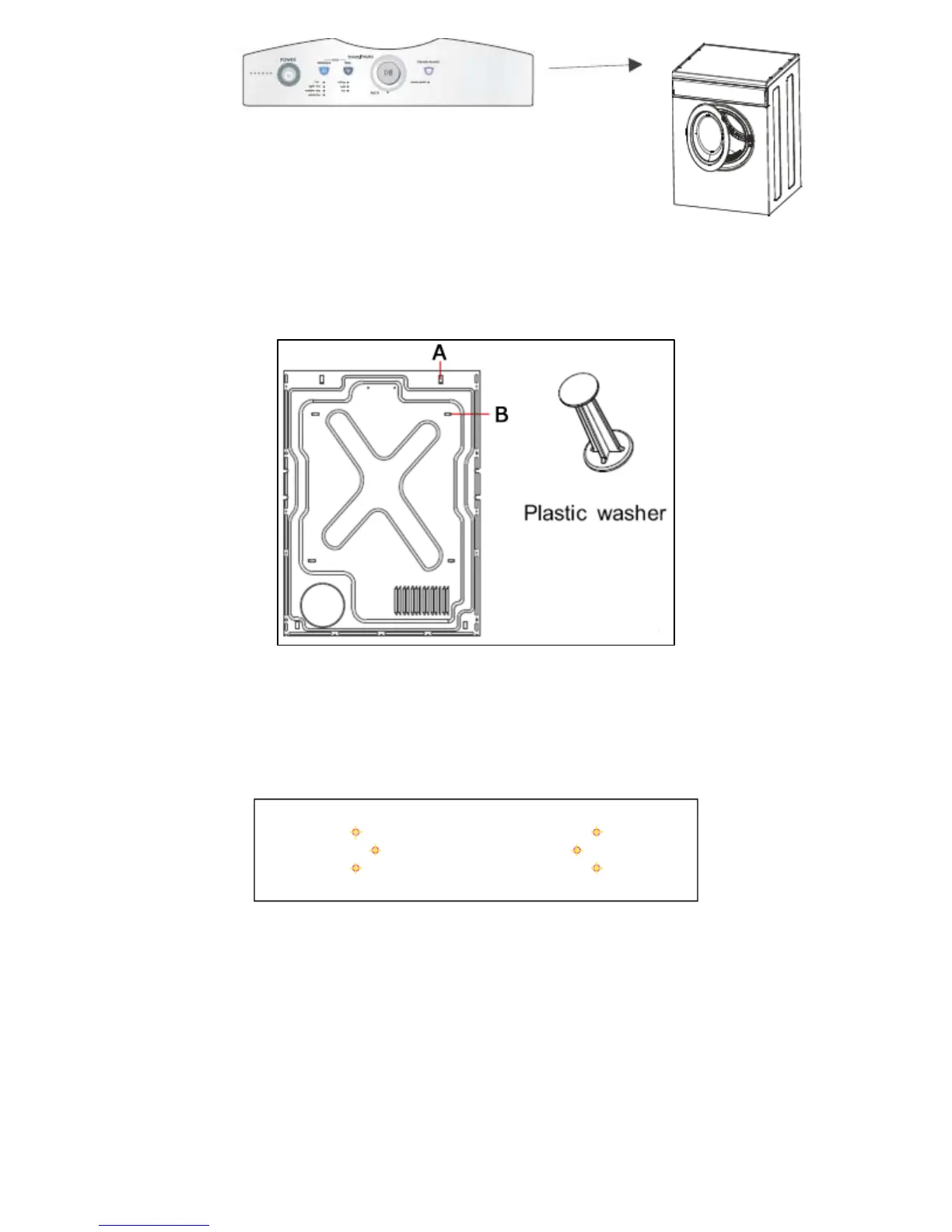

the appliance below the square hole. (See
drawing below).
o Place the plastic washer in the hole marked B and then rotate it
90 degrees to secure.
o Use the installation template supplied to mark the position of the
drill holes on the wall. The height at which you install the
appliance depends on personal preference. Drill the marked
holes.
o The left and right hooks should then be fixed in the three drilled
holes on either side using the expansion pipes.
o Place the bolt into the expansion pipe so that the head of the
bolt is inside the hole and the end of the bolt is through the hole
in the hook. Fit into place with the spring washer, flat washer
and nut.
