21

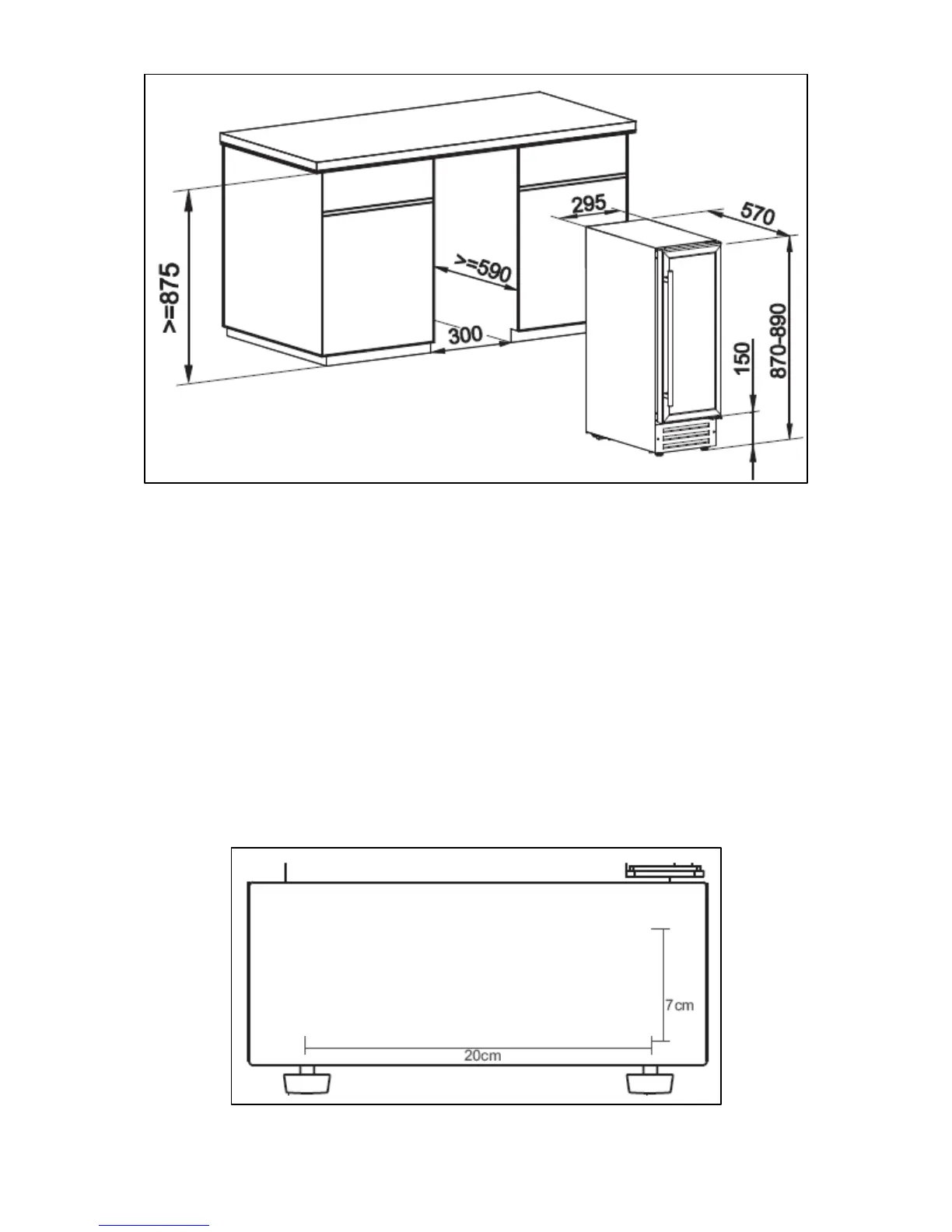

Built-in installation
o Your wine cabinet can be used as a freestanding or a built in
unit. If you are going to use it as a built in unit, then the
dimensions shown in the diagram above will need to be followed.
o In particular the depth dimension must be observed.
o IMPORTANT: The vent at the base of the appliance is for
ventilation. Nothing should be placed in front of this vent;
otherwise your wine cabinet may not operate properly.
o A decorative plinth can be fitted to the front of the base vent as
long as the cut out shown in the diagram below is made in the
plinth. This cut out is required whether the vent is removed or
not.
