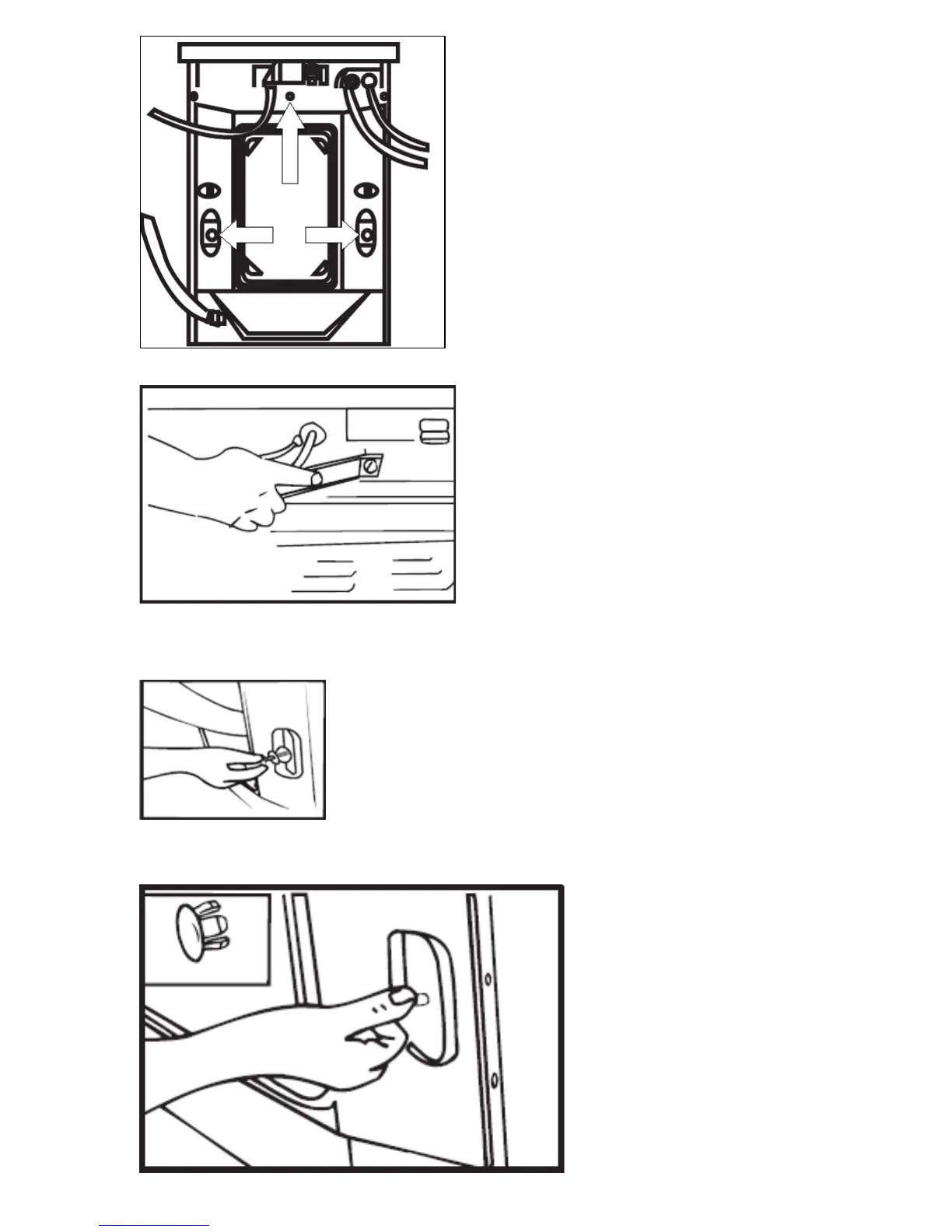

o The location of the three
transit bolts are shown in the
diagram opposite.
o You should use a spanner to
loosen and remove the top
transit bolt first.
o There is also a transit bar
across the top of the
appliance which should be
removed.
o Use a spanner to loosen and remove the two remaining transit
bolts.
o You should also remove the rubber
grommets from the holes; these are
exposed once the transit bolts are removed.
o Replace the back plate on the rear of the appliance.
o Insert the plastic
caps that are
supplied, into the
holes that you
have removed the
transit bolts from.
32
