Baumatic F90.2BL - Fitting the Carbon Filters (S1 Carbon Filters)

19
o Repeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
o Refit the grease filters.
o The carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
Fitting the carbon filters (S1 carbon filters)
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.

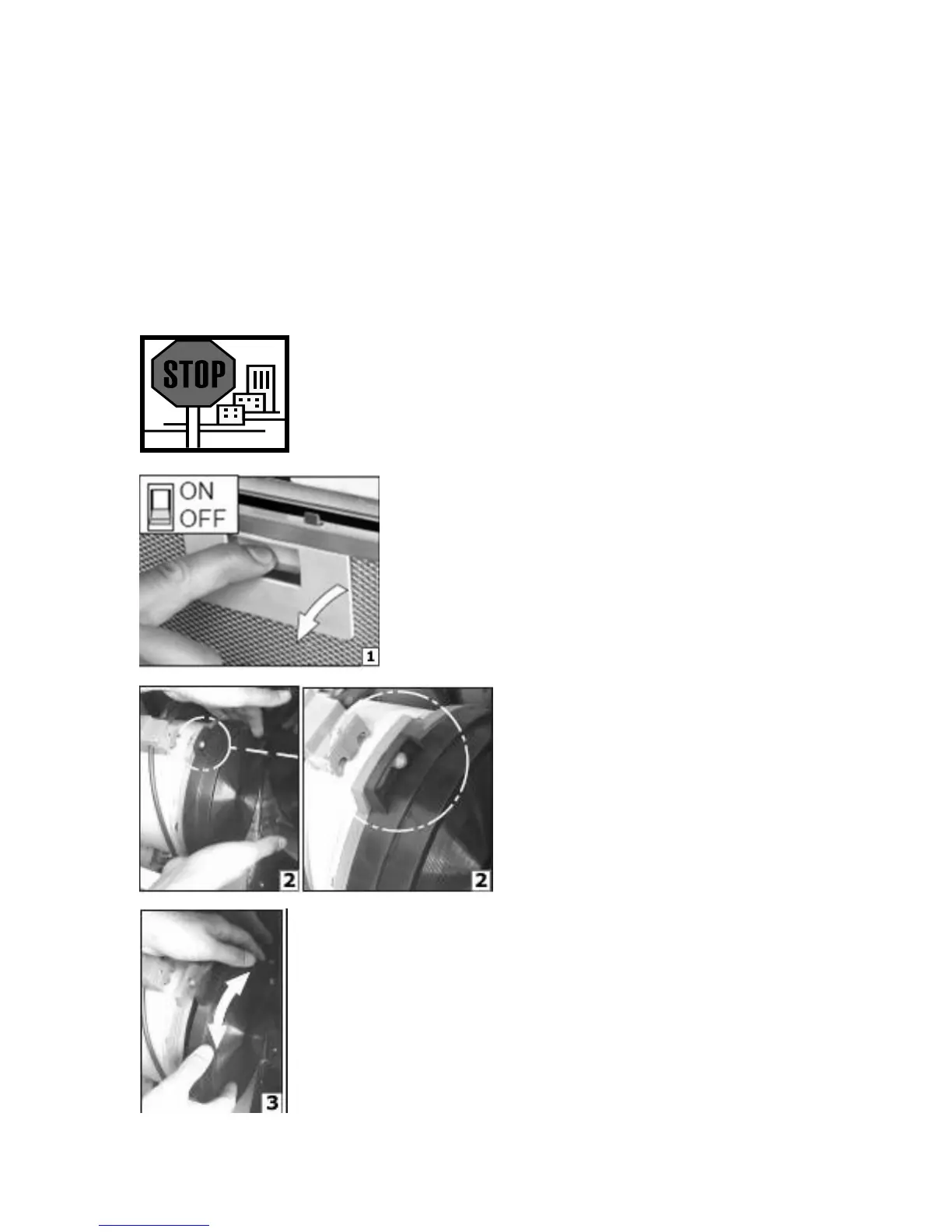

1) Remove the grease filters.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise, until you feel
it click into place.
