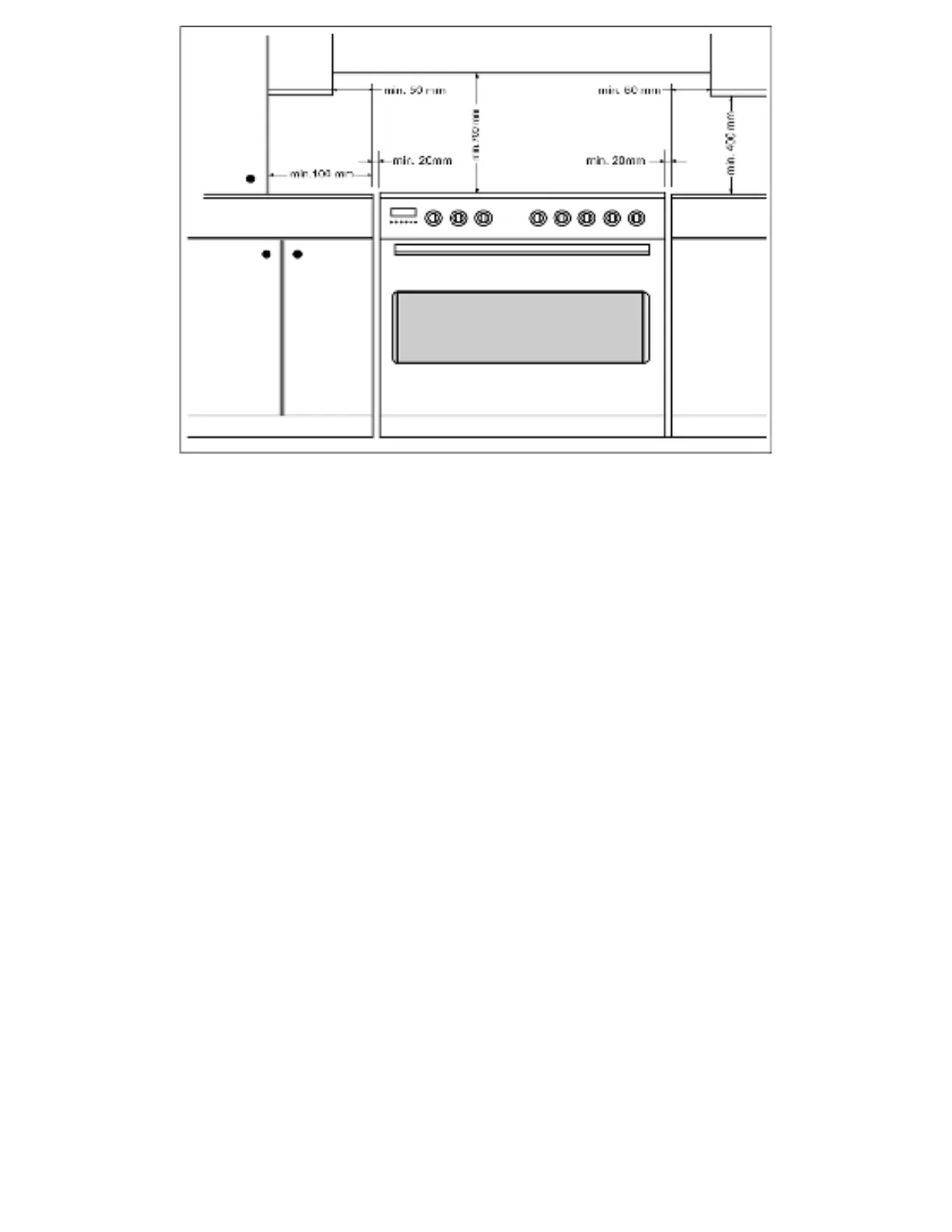

o The cooker is designed to slot in between 600 mm deep
cabinets, which are spaced approximately 940 mm apart.
o It can also be used as freestanding, with a cabinet to one side, in
a corner setting or with its back to a wall.
o IMPORTANT: It should not be installed at the end of a run of
cabinets, if there is a cabinet at immediate right angles to the
cooker door.
o The wall behind the cooker and 450 mm above and across the
width of the cooker should be an incombustible material and
preferably an easy clean surface, such as ceramic tiles.
o Any overhanging surface or cooker hood should be at least 700
mm above the highest point on the hob top (including the
burners).
o Baumatic do not recommend that the cooker is positioned below
wall cupboards, as the heat and steam from the appliance and
what is being cooked, may damage the cupboard and its
contents.
