14
--------------------------------------------------------------------------

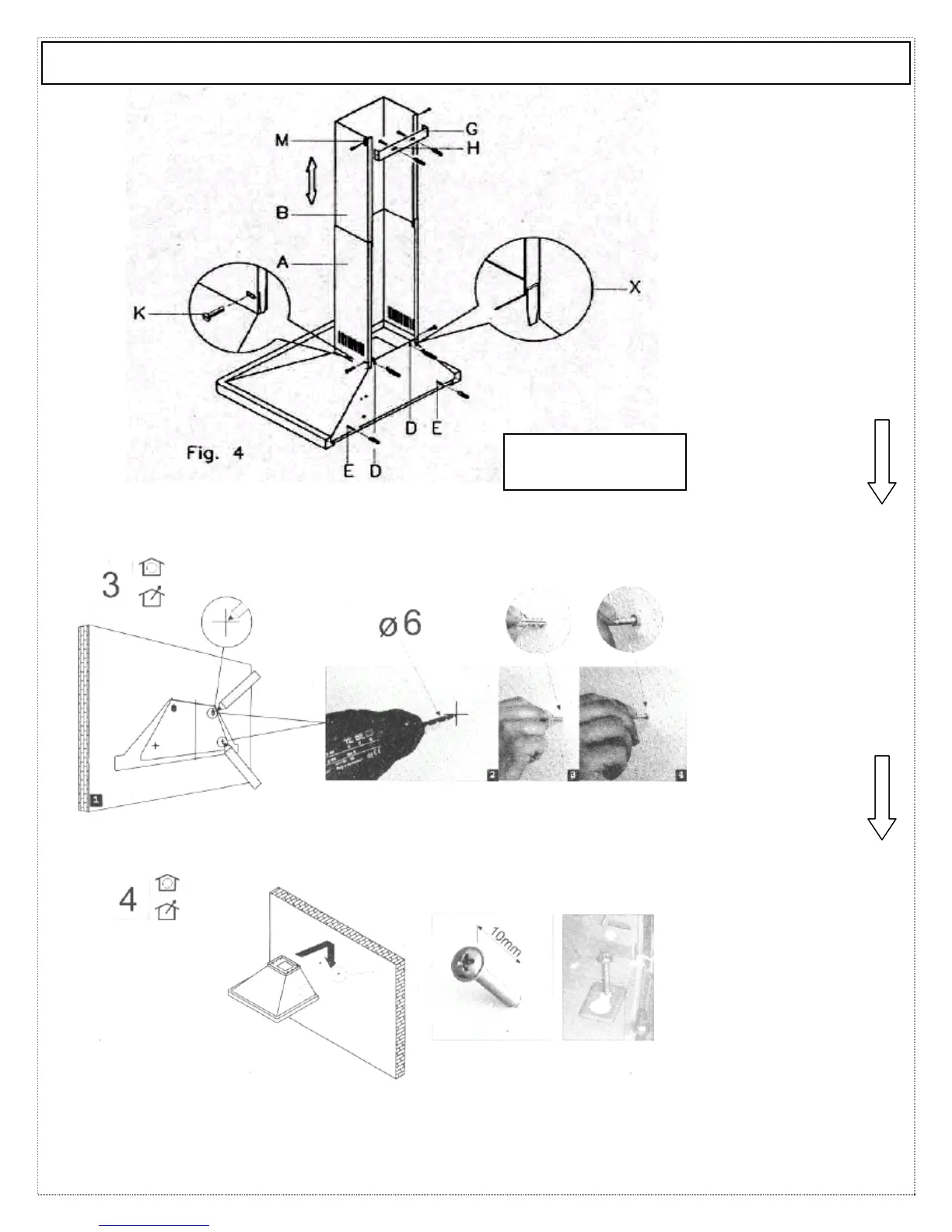

3) Using a drill bit with a 6 mm diameter, make holes in the wall where you have
marked these positions (see below).
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4) Insert the expansion fixings (rawlplugs) in the holes and then screw the
support screws halfway in (see below figure, at right).
5) Hook the hood onto the screws (see above figure, at left) and fasten it onto
the wall, tightening the support and anchoring screws the rest of the way in
(next page, at top.)
Rear view of your
cooker hood.
INSTALLATION INSTRUCTIONS – Attachin
the Hood
