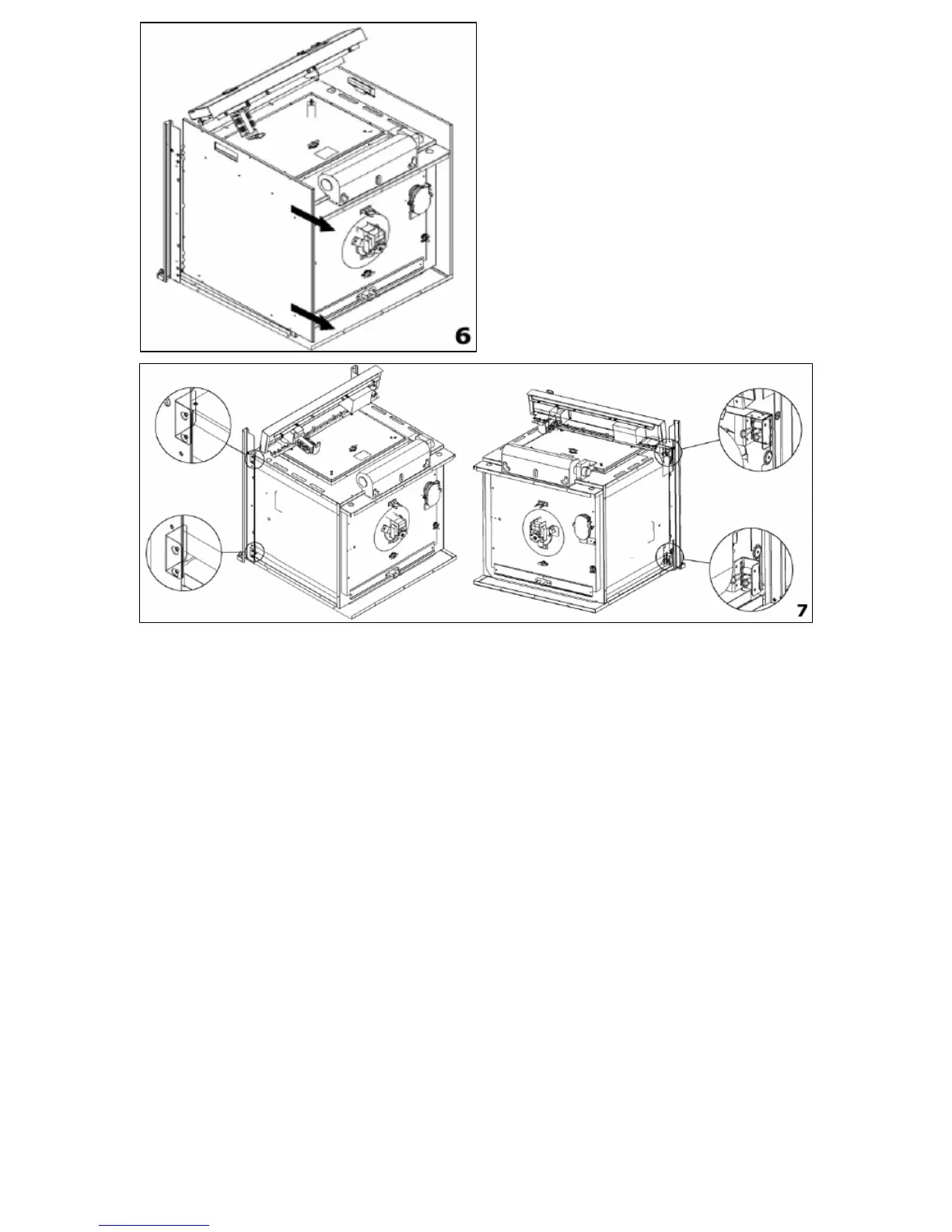

6) Remove the side covers from
both sides of the appliance.
7) To gain access to the rear part of the door frame, the following
stages need to be followed;
o The door has two pivots, which slot into the lock assemblies that
are located behind the door frame.
o On the other side of the door frame, there are two covering
plates.
o Loosen the screws that fix the lock assemblies and covering
plates into place. Then place the lock assemblies and covering
plates onto the other side of the door frame from where they
were originally placed.
o IMPORTANT: Whilst completing this section, it is
important to avoid causing damage to the oven insulation.
23
