Baumuller BUG 3 - Page 39

Accessories Installation
BUG 3/2/20 Basic Feed Unit 31
Baumüller Nürnberg GmbH 5.96064.02

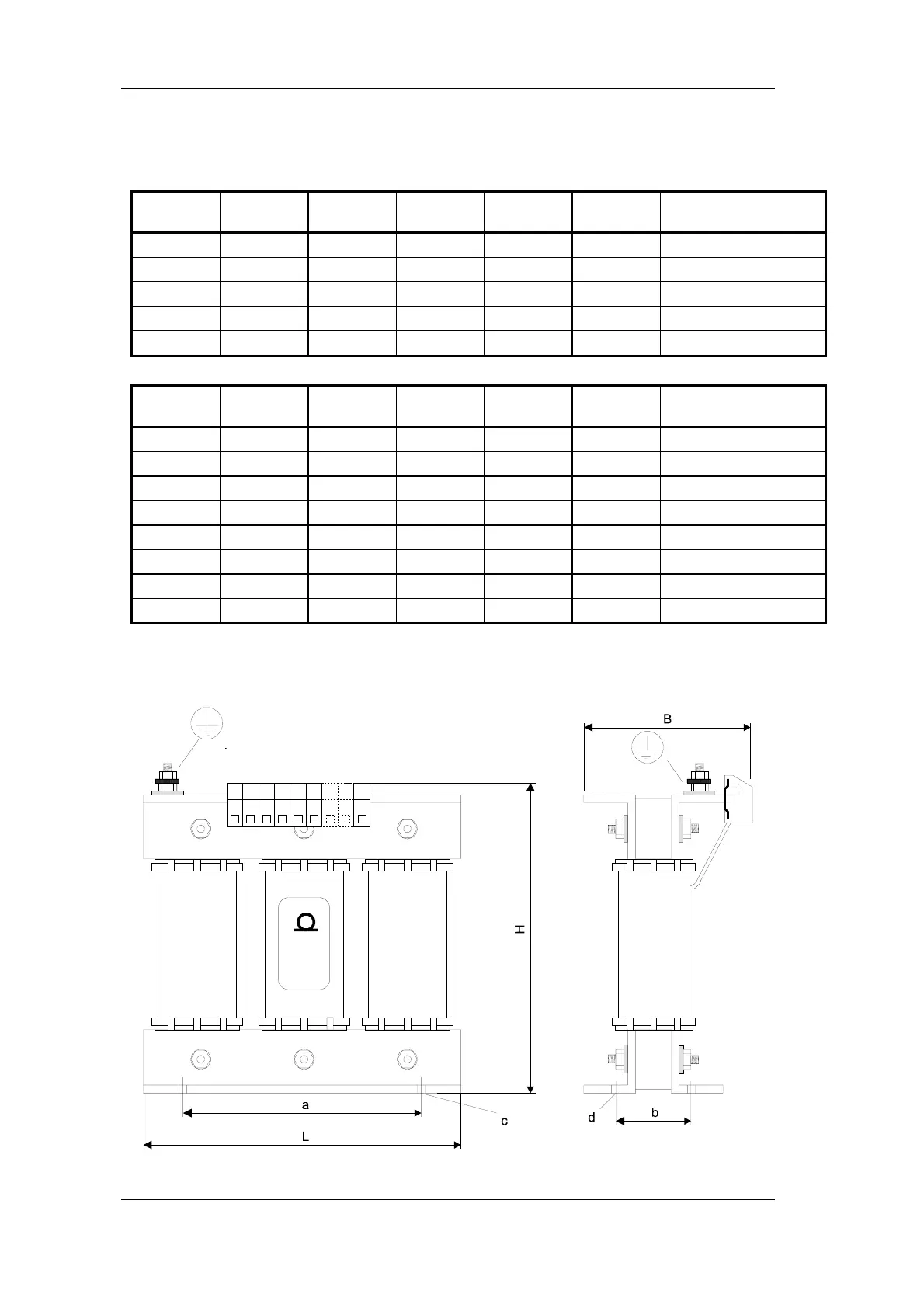

Dimensions
Isolating
transformer
Power
(kVA)
Length L
(mm)
Breadth W
(mm)
Height H
(mm)
Weight W
(kg)
Fastening/Hole
axb / cxd (mm)
19007154 0.4 180 110 155 7.5 136x55 / 7.0x14
19007155 1.0 204 140 175 15.0 175x85 / diam. 8.5
19007156 2.5 240 160 205 22.5 200x100 / diam. 8.5
19007157 5.0 360 195 305 68.0 300x130 / 9x14
19007158 8.0 360 210 305 77.0 300x150 / 9x14
Autotrans-
former
Power
(kVA)
Length L
(mm)
Breadth W
(mm)
Height H
(mm)
Weight W
(kg)
Fastening/Hole
axb / cxd (mm)
19007159 0.4 150 75 130 4.2 113x48 / 5.8x11
19007160 1.0 180 110 175 7.5 136x56 / 7.0x14
19007161 2.5 204 140 200 15.0 175x85 / 7.0x14
19007162 5.0 240 160 225 22.5 200x100 / 9.0x14
19007163 8.0 270 170 255 27.0 220x105 / 8.5x12
19007165 10.0 270 170 250 29.0 220x105 / 9.0x14
19007166 15.0 340 210 305 51.0 280x110 / 12.0x8.5
19007167 25.0 400 210 385 78.0 340x130 / 9.0x14
