1-4
1. Product Information
1
Mains switch
as overcurrent
safety switch with thermal
tripping
2
Pushbutton „Ready to switch on“
( )
3
Pushbutton „High Voltage On“
(
I
) with pilot lamp
(clearing of H.V.)
4
Pushbutton „High Voltage Off“
( )
5
Overcurrent safety switch
with thermal and magnetic
tripping
6
Voltmeter
for display of output voltage in kV
7
Amperemeter
for display of output current in mA
8
Measuring range switch
for amperemeter
9
Selector switch for operating mode
(+ / ~ / -)
10
Measuring range switch
for voltmeter
11
Variable transformer
for setting the output voltage
12
Lockabel Emergency off momentary contact switch
13
Indicator lamp, green
14
Indicator lamp, red

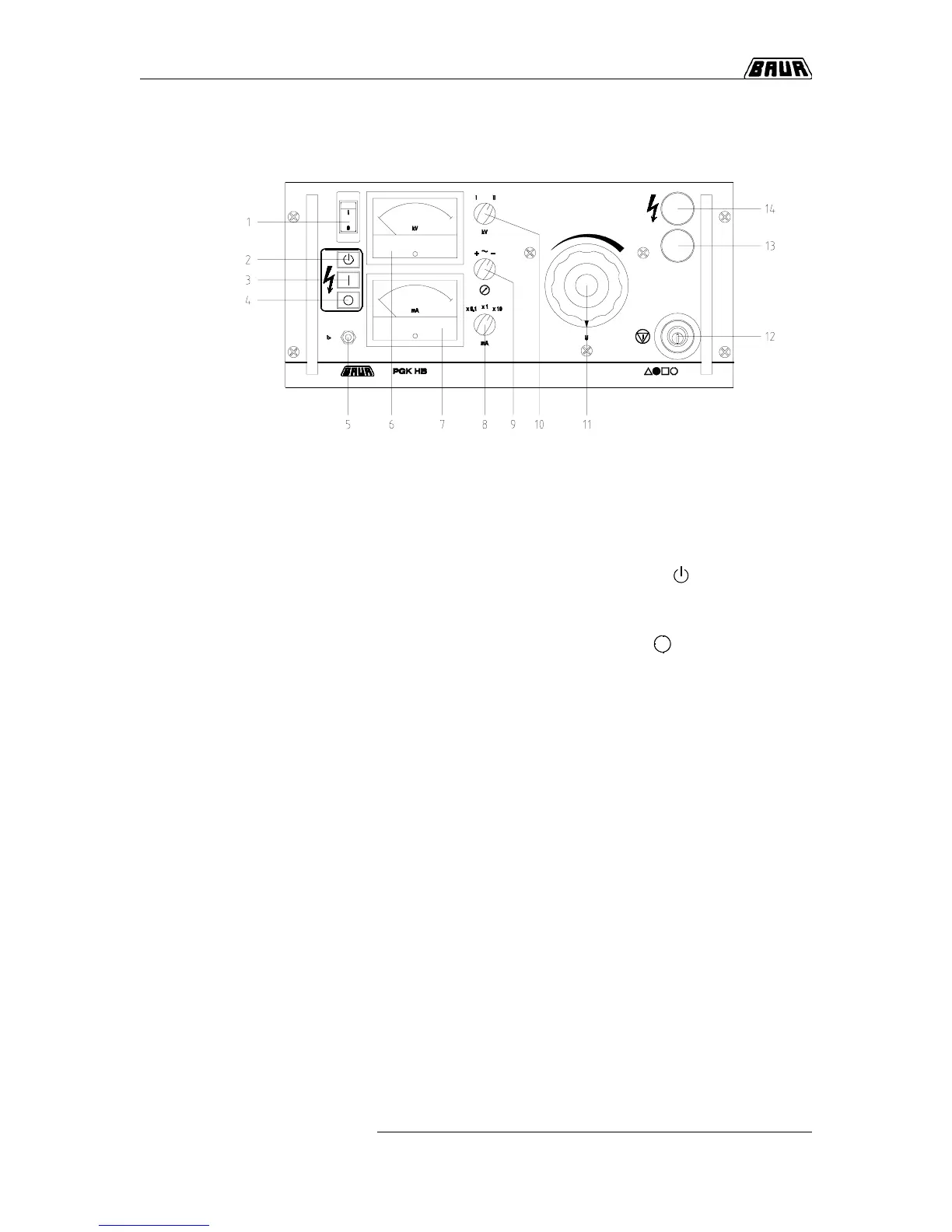

Display and operating elements
