10

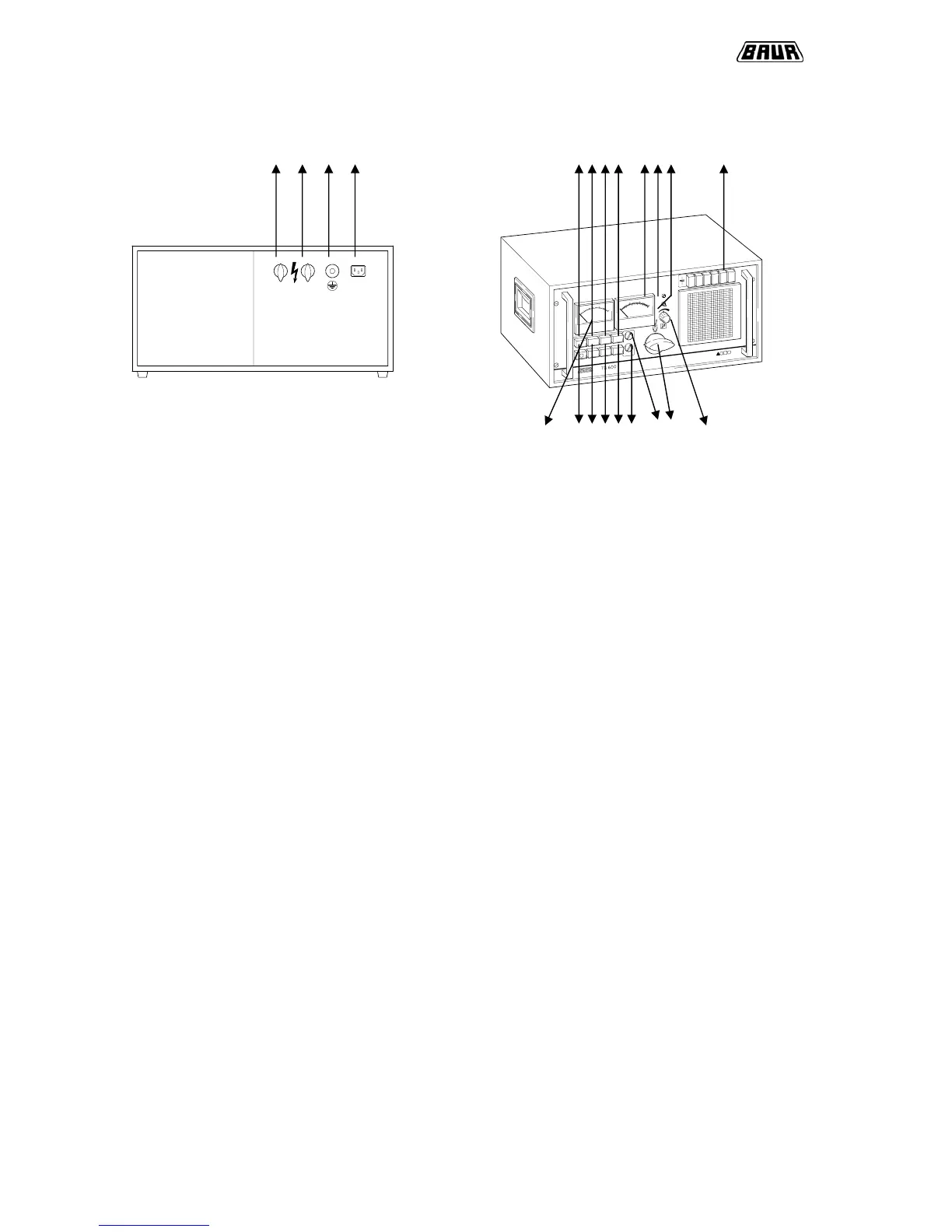

2.1.2 TG 600
18 17 16 4 4 6 8 10 2 3 14 15
1 5,7,9,11,20,19,12 13
Display elements:
1 Input current of adjusting transformer
2 Output current of adjusting transformer
3 Overtemperature indication
Operating elements:
4 Mains ON
5 Mains OFF
6 Frequency selection 2 kHz
7 Frequency selection 10 kHz
8 Continuous operation
9 Impulse operation
10 Output power 60 VA
11 Output power 600 VA
12 Impedance selector switch Zi
13 Power control
14 Measuring range selector for output current
15 Push-buttons for compensation capacitors
Interfaces:
16 Mains connection
17 Protective earth terminal
18 Output sockets
19 Fuse F1
20 Fuse F2
