5 Put UL 30 into operation
5.1 Startup
For operation switch on the UL 30 with the ON / OFF button. The UL 30 performs a self-
and battery test.
With the selection of Last you are switched to the working plane which was used the last
time. With <- in the working plane you are entering the main menu. Here a selection of fault
location, route tracing and setup is possible.
The display and working of measurement is divided into two planes. A special Switch-
Buttonallows the fast changing between working- and config plane. The first plane the so
called “working” plane shows the important figures and allows necessary adjustments which
are often needed. The second plane “config” plane shows all adjustable parameters of the
selected measuring method.
Only after activating the switch button changing of parameter
settings are saved. At a newly recall with "Last" the new
settings are active!

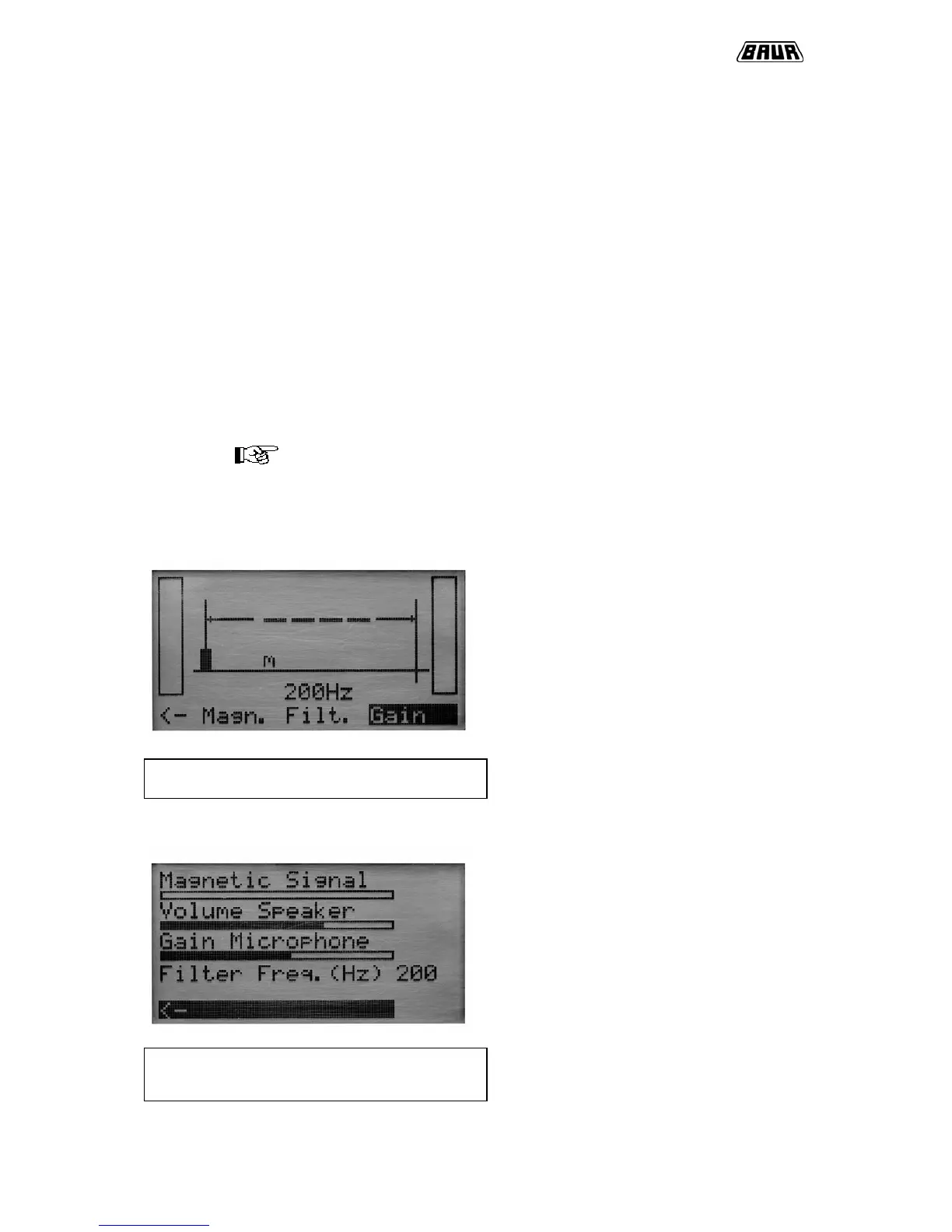

The menus of acoustic location are taken as example:
Working plane:
Konfig plane:
Press SWITCH – Button!!!
Press SWITCH – Button or <- !!!
Switch back to working plane.
