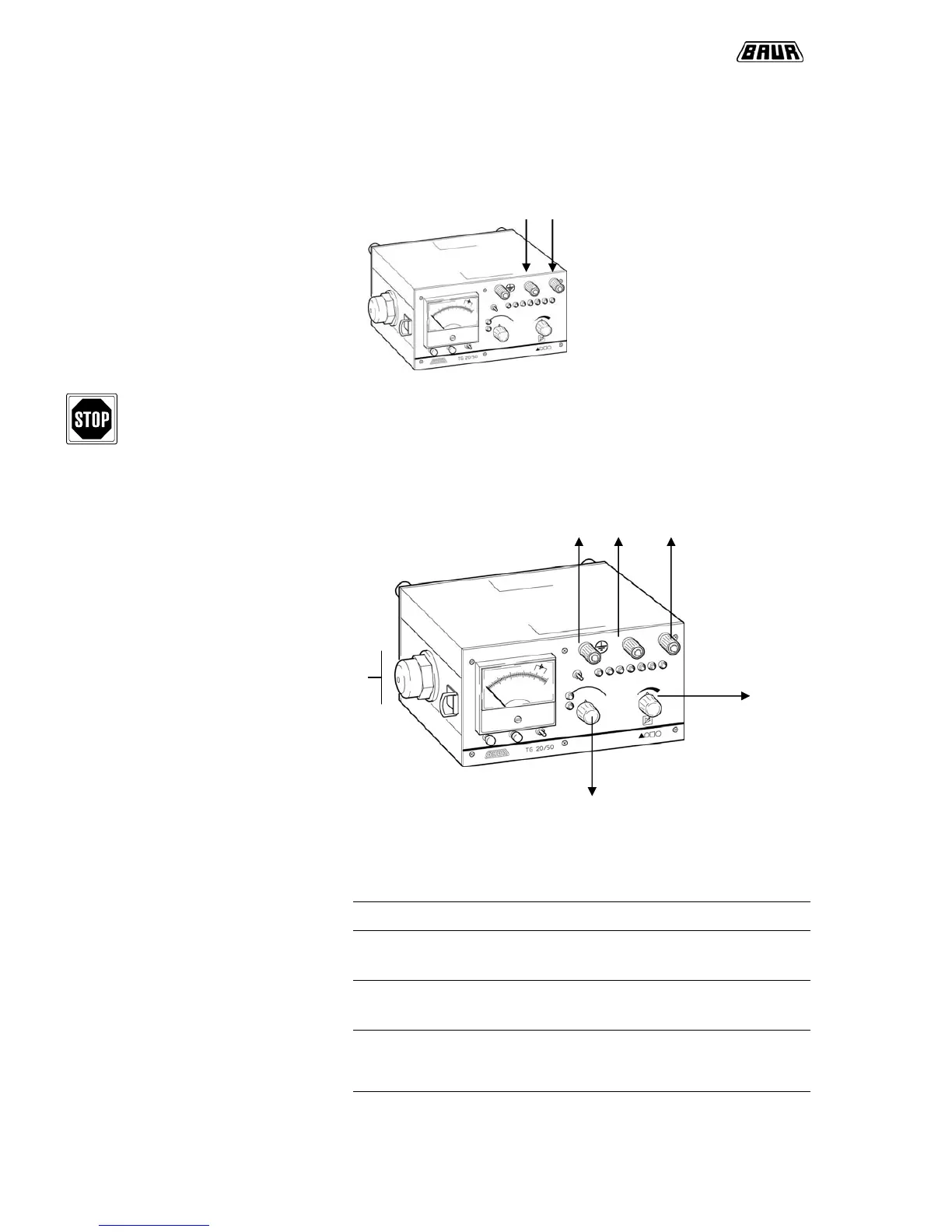

Connection of Audio Frequency Generator
Connecting the TG20/50 unit is made either via the output sockets “output” (galvanic con.),
the clip on device AZ 10 or the loop antenna RA 10
Do not connect live cables and lines (e.g. interference noises, mains pick-ups) to the sockets
‘output’! Danger of unit destruction!
Before connection, always check if line is zero potential!
Carry out galvanic or inductive connection
1 2 2a
4
Step Procedure
1 Connect earth lead.
2a Make galvanic connection: Connect a dead
cable/line to the two black sockets ‘output’.
2b Make inductive connection: Remove side cover
and connect loop antenna.
3 Turn output regulator completely to the right stop.
Observe max. permissible voltage of connected
line.
4 Set mode selector to the desired operating
frequency. Power Control lamp lights up.
Carry out either
step 2a or 2b
Switch on
Audio Frequency
Generato
