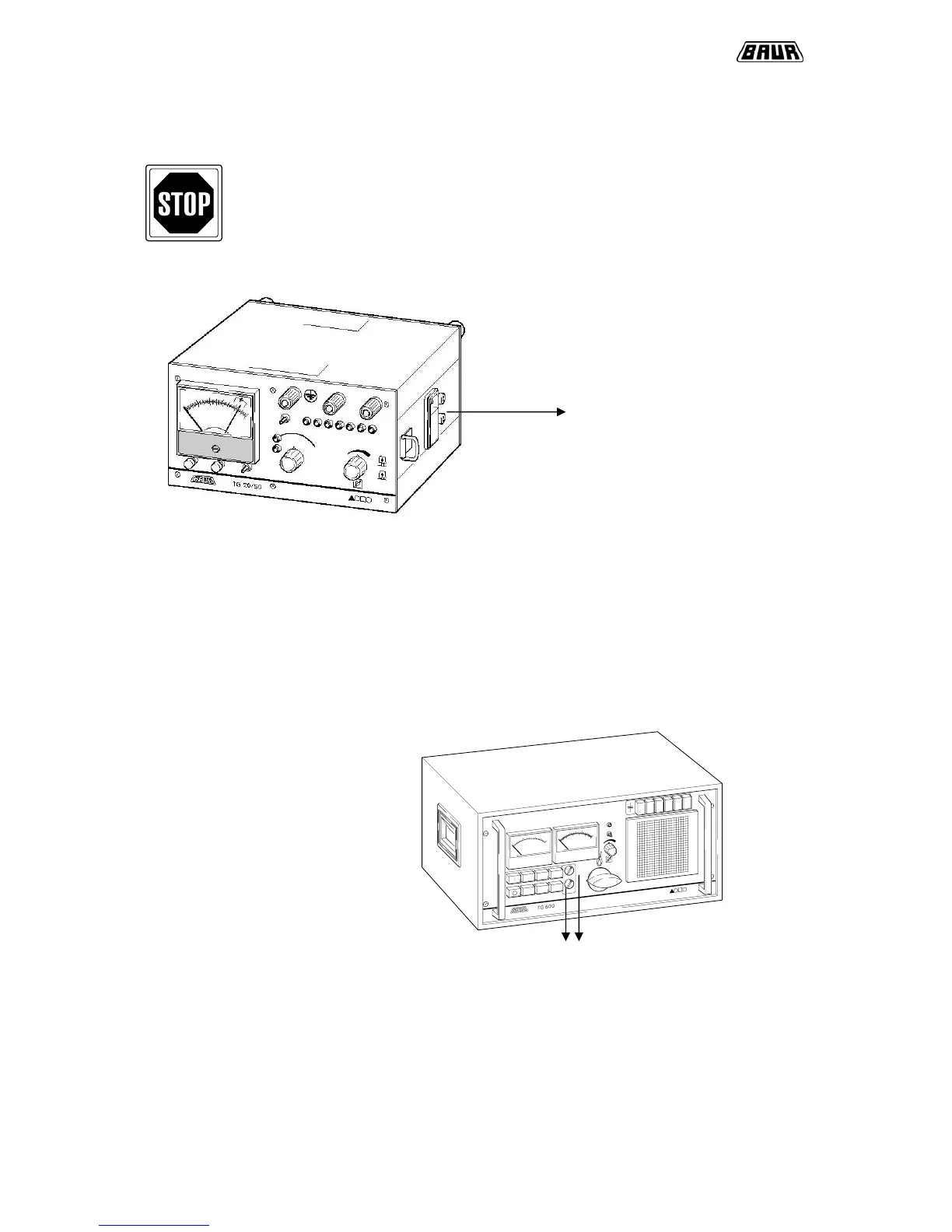

Replace fuses of Audio Frequency Generator
In case of unit switch off due to fuse tripping: Only insert new fuses with
the specified rating!
Audio Frequency Generator TG20/50
Set mains voltage F1 F2 (Ø 6.3 x 30 mm)
110 V / 120 V T4A/250V T4A/250V
220 V / 230 V T2A/250V T2A/250V
240 V T2A/250V T2A/250V
Internal fuse F1: T8A/250V (Ø 5 x 20 mm)
Audio Frequency Generator TG600
F2 F1
Set mains voltage F1 F2 (Ø 5 x 20 mm)
110 V / 120 V T16A/250V T16A/250V
220 V / 230 V T8A/250V T8A/250V
Internal fuse F3, F4: T0.5A/250V (Ø 5 x 20 mm)
Depending on set mains voltage insert specified fuses.
F1
F2
☞
