Installation and Operating Instructions IP Series Codec
OVERVIEW
Baxall Destiny IP Series Codecs comprise a single hardware unit that may be configured to function as an encoder or as a
decoder. Codecs are available in 1, 2 or 4-way units housed within a single 19 rack-mounted enclosure. The products
described in this manual are:
IP-ENC1-R 1-way 19 Rack Mounting IP Encoder
IP-ENC2-R 2-way 19 Rack Mounting IP Encoder
IP-ENC4-R 4-way 19 Rack Mounting IP Encoder
IP-DEC1-R 1-way 19 Rack Mounting IP Decoder
IP-DEC2-R 2-way 19 Rack Mounting IP Decoder
IP-DEC4-R 4-way 19 Rack Mounting IP Decoder
IP-ENC1DEC1-R 1-way 19 Rack Mounting IP Encoder and Decoder
IP-ENC2DEC2-R 2-way 19 Rack Mounting IP Encoder and Decoder
Destiny IP Codecs can support PAL or NTSC multicast video and audio, control data and external alarms. They can be
configured over the network to function as either encoders or decoders and are able to transmit a video stream at variable
bit rates of between 8 Kbps and 1.5 Mbps. The codecs data channel(s)can be set up for RS232, RS422 or RS485 operation
to allow for integration of third party pan-tilt-zoom (PTZ) units and dome cameras. Image compression is pre-configured to
use either the MJPEG or H261 standard.
Features:
Highly flexible and expandable.
Operates over any existing physical network.
Can function as a stand-alone CCTV system or as an extension to an existing analogue system.
Low-cost implementation of a remote monitoring system.

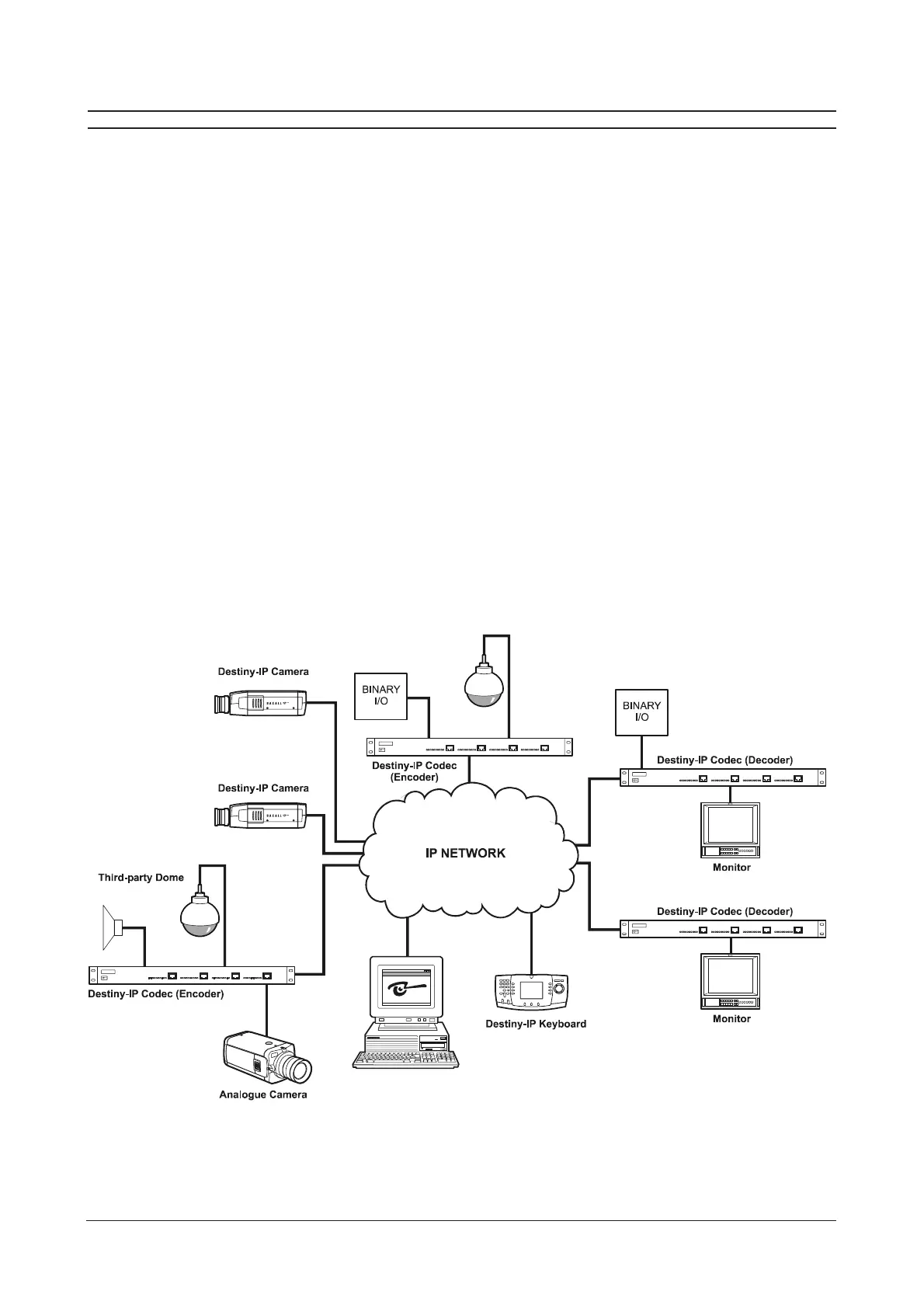

IP System Schematic
