VIDEO OUTPUT CONNECTIONS (DECODER ONLY)

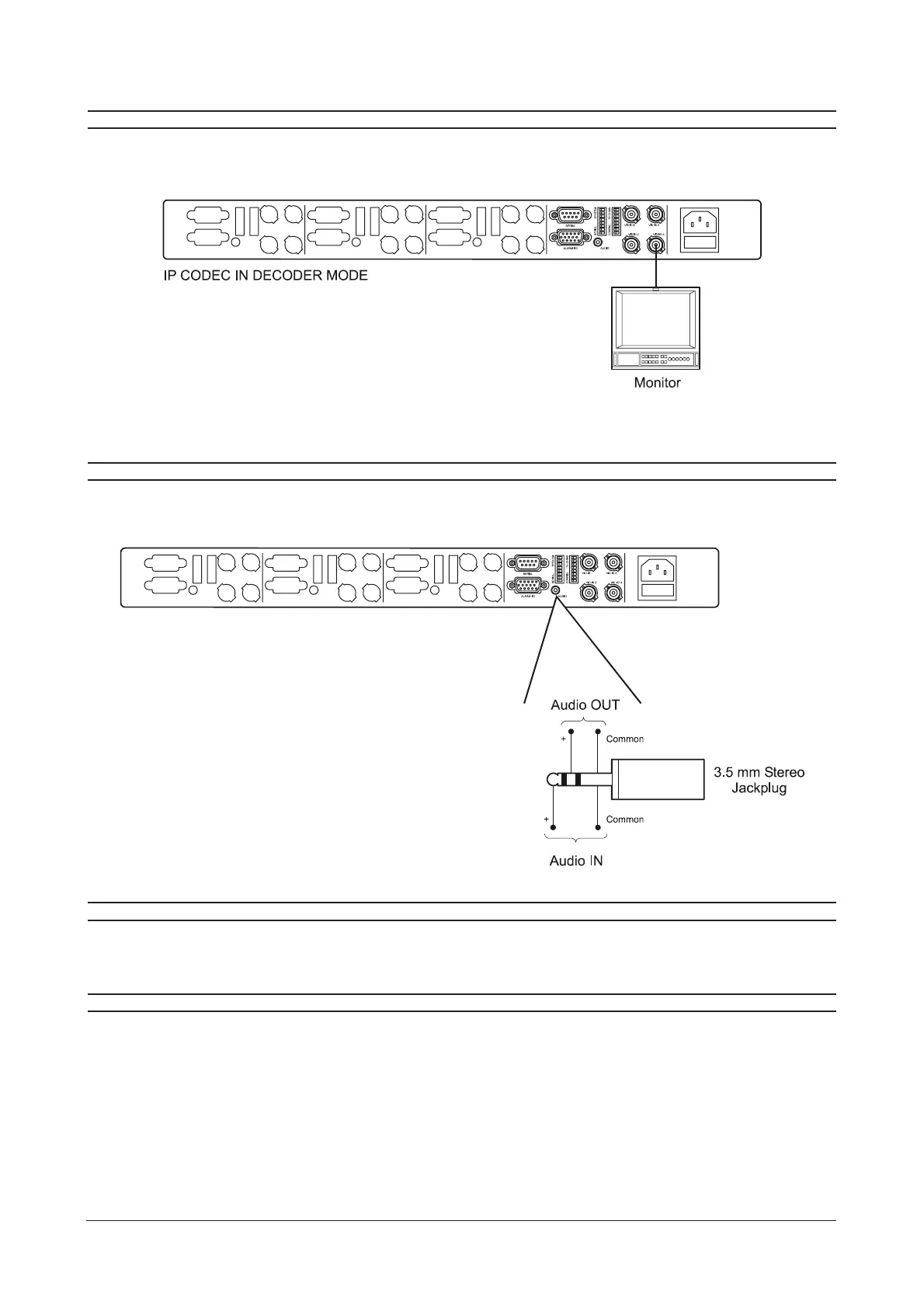

A system monitor is connected to the VID I/O BNC connecter of an IP Codec that is configured to function as a Decoder as
shown below.
AUDIO CONNECTIONS (ENCODER AND DECODER)
Audio Line in and Line out signals are available on each channel of an IP Codec via a stereo 3.5mm jack socket.
SETTING THE IP ADDRESS
The user may configure the IP address, sub-net mask and default gateway. This is achieved by use of the Properties and
Network options within the administrator tool.
MAC ADDRESS
The MAC address is normally transparent to the user and is pre-programmed at the factory. The programmed address is
indicated on a label located on the underside of the unit towards the rear panel.
