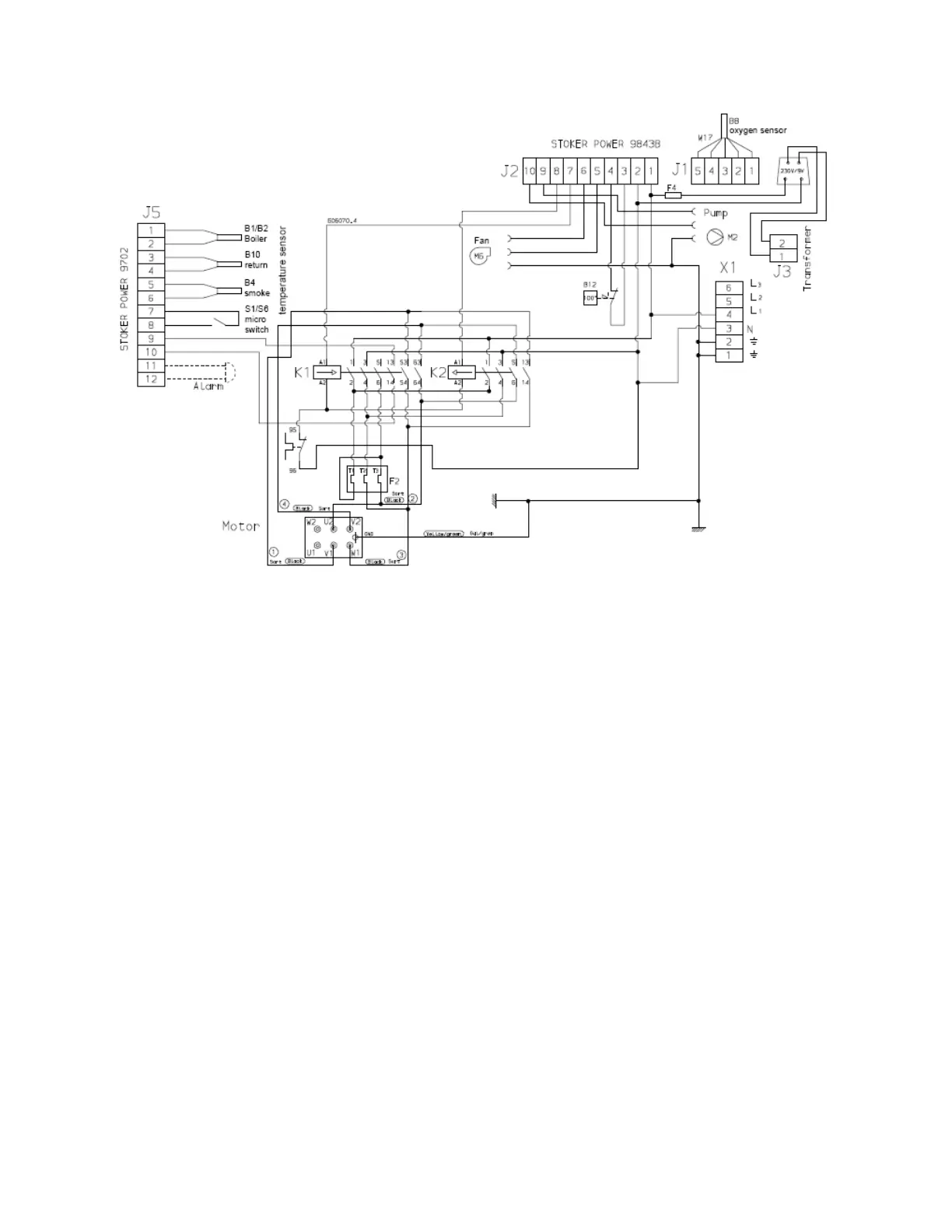

4.2.4 Explanation for Electrical Diagram
B 12 - Ebullition thermostat
F1 - Fuse 1.6A
F2 - Motor protection
F3 - Fuse 1A
J1 - Oxygen probe
J2 - Power tag block 230V DC
J3 - Electric current for the oxygen sensor 9V AC
J4 - Connection between power and control printed circuit
