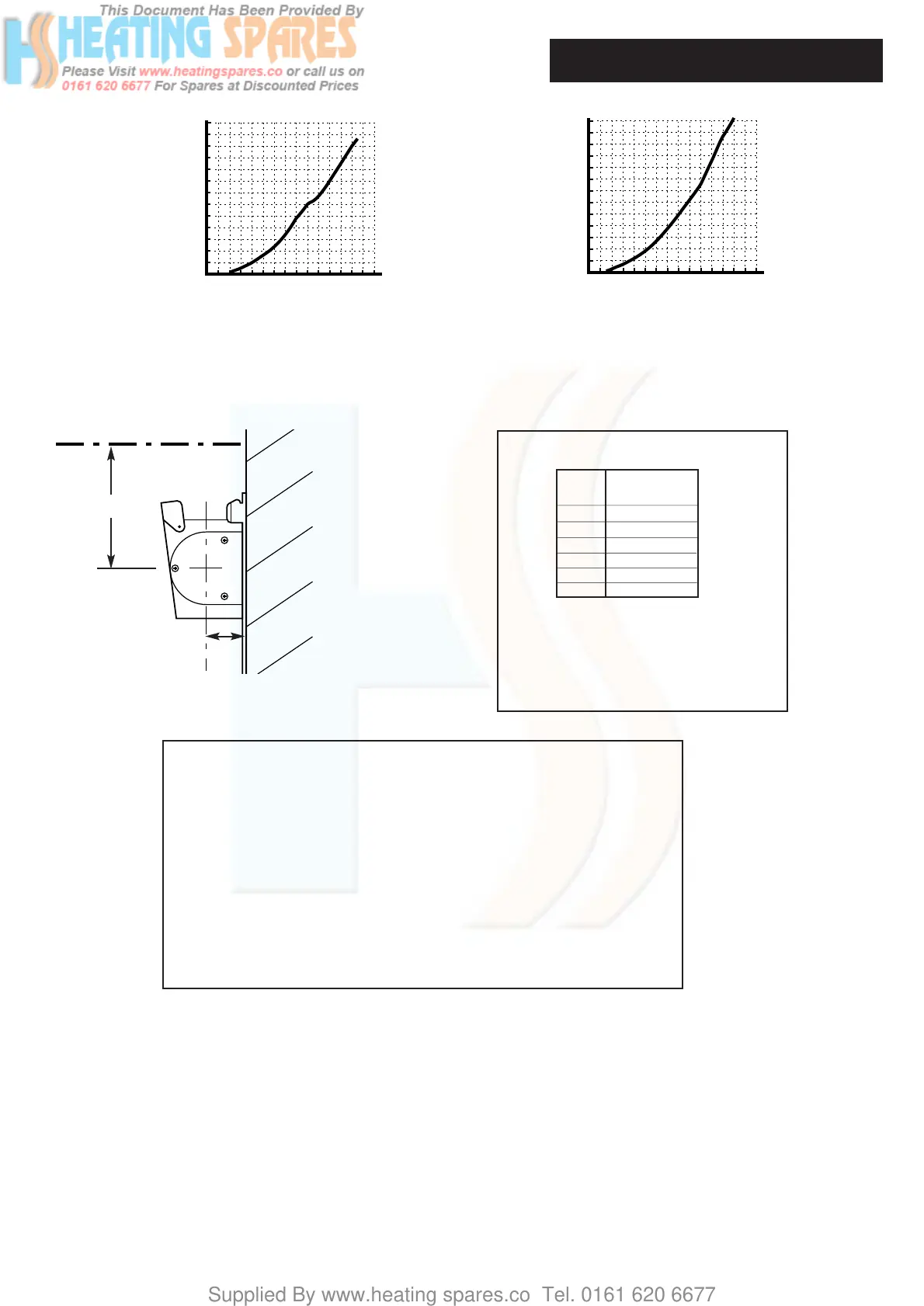

3.0 Technical Data
7
(4) 10
(8) 20
(16) 40
(24) 60
(12) 30
(20) 50
(28) 70
(32) 80
(36) 90
(40) 100
(44) 110
(48) 120
2 4 6 8 10121416182022
Water Flow Rate litres / min
Pressure Drop mbar (in wg)
242628 30
(52) 130
(4) 10
(8) 20
(16) 40
(24) 60
(12) 30
(20) 50
(28) 70
(32) 80
(36) 90
(40) 100
(44) 110
(48) 120
2 4 6 8 10121416182022
Water Flow Rate litres / min
Pressure Drop mbar (in wg)
242628 30
(52) 130
30, 40 and 50 models
60, 70 and 80 models
Hydraulic Resistance Charts
• This appliance is only intended for installation on a governed supply.
• PMS = 3 bar pressure class 2
• Max CH water pressure 3 bar
• Type C
12
C
32
C
52
• Nox class 1
• Appliance category
I
2H
2H - G20 - 20mbar
• Ref: 86/AU/588
• Burner Injector Sizes: 30=B31 40=B32 50=B33 60=B34 70=B35 80=B36
• This boiler is designed to operate at a maximum water temperature of 85° C.
68mm
Model Seasonal Efficiency
(SEDBUK) (%)
30 79.4
40 78.4
50 78.0
60 78.5
70 78.2
80 78.7
This value is used in the UK Government’s Standard
Assessment Procedure (SAP) for energy rating of
dwellings. The test data from which it has been
calculated have been certified by 0086.
SEDBUK Declaration For Solo 3 PFL System
All Models
Top of Outercase
120mm
