Baxi SPC 200 - Positioning the Appliance; Unpacking the Appliance

SPC 300S

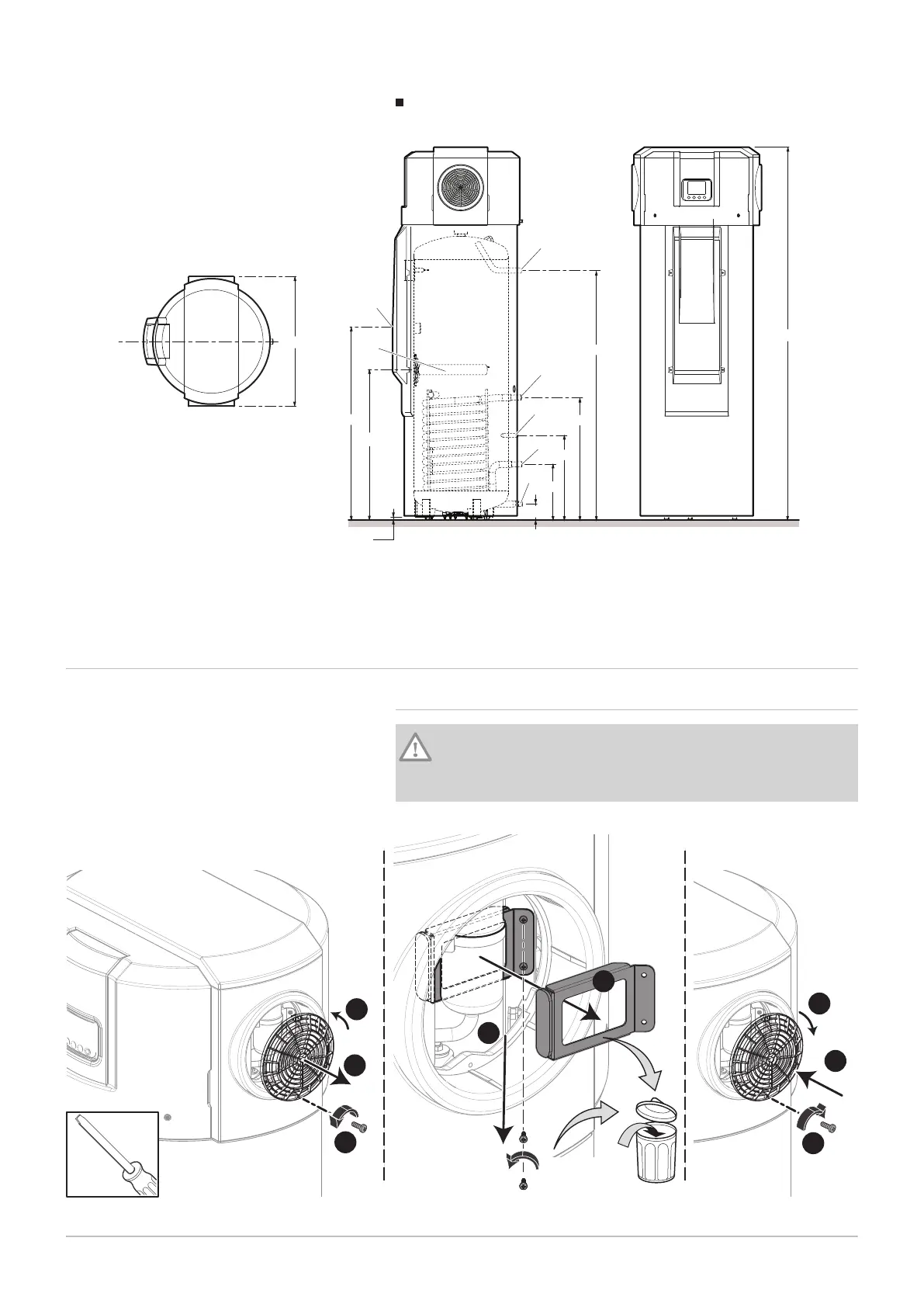

Fig.11
MW-1000358-1
90
690
810
300
455
658
1375
2000
1025
4
(1)
1
2
3
4
5
6
7
1
Impressed current anode
2
1.8 kW steatite immersion heater
3
Secondary domestic hot water flow G 3/4”
4
Solar exchanger or boiler inlet G 3/4”
5
Sensor tube for solar or boiler sensor
6
Solar exchanger or boiler outlet G 3/4”
7
Domestic cold water inlet G 3/4"
(1)
Adjustable feet
5.5 Positioning the appliance
5.5.1 Unpacking the appliance
Caution
Remove all packaging materials. Check that the contents are
intact. If you notice a defect, do not use the appliance and contact
the supplier.
Fig.12
M003102-A
1
2
3
4
5
6
7
8
1. Remove the retaining screw from the fan grille.
