197, 219, & 249 • Owner’s Manual
Supplement
Chapter 7: Deck Equipment
53

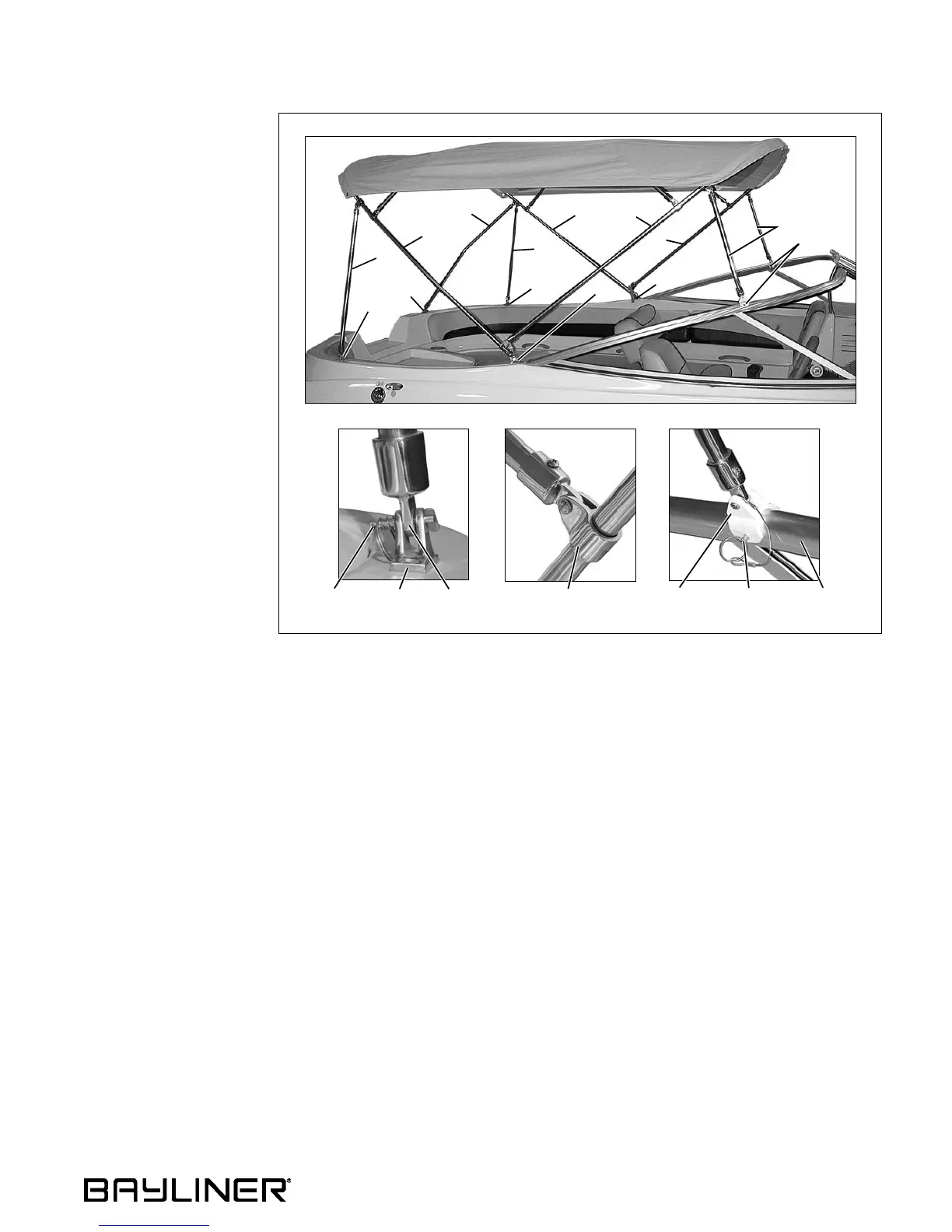

219 & 249 Bimini Top (If Equipped)
1. Insert the end eyes of
the main bow (A) into
the deck hinges (B)
and insert the securing
pins.
2. Insert the end eyes of
the aft braces (C) into
the deck hinges (D)
and insert the pins.
3. Insert the end eye of
the port stern support
(E) into the deck hinge
(F) and insert the pin.
4. Pull the secondary
bow (G) and the
braces (H) forward.
5. Slide the windshield
hinges of the forward
brace over the pre-
drilled holes (I) in the
windshield frames and
secure with the
attached pins.
• The jaw slides should
not need to be adjusted.
• If you decide to adjust
the jaw slide positions,
obtain the correct mea-
surements from your
selling dealer.
WINDSHIELD
FRAME
WINDSHIELD
HINGE
SECURING
PIN
END
EYE
DECK
HINGE
SECURING
PIN
JAW
SLIDE
A
G
A
C
E
C
G
F
D
B
H
B
D
I
