5

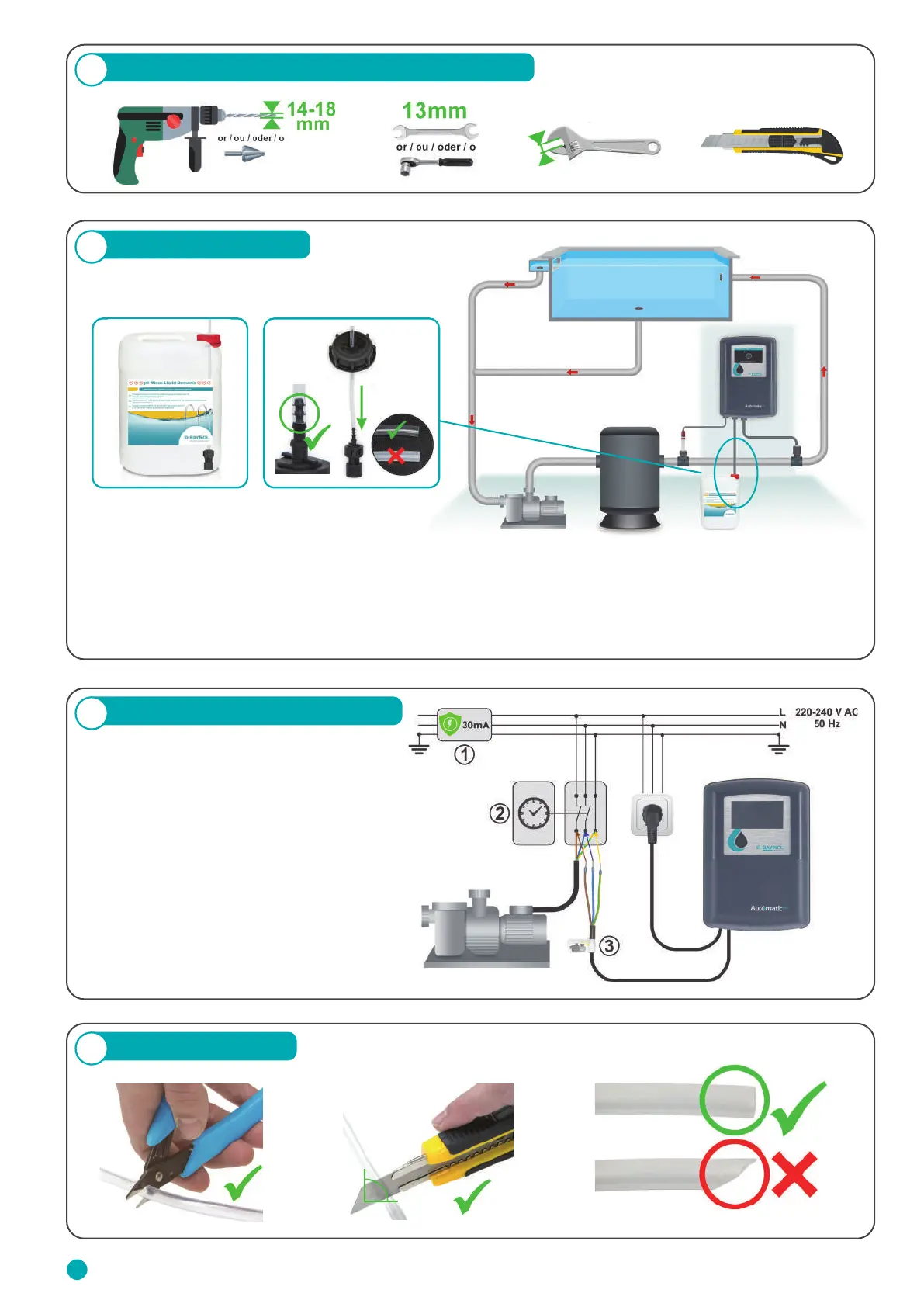

Installation scheme
6
Electrical installation scheme
IMPORTANT:
The injection of pH-Minus Liquid Domestic or pH-Plus Liquid must be the last component of the installation before
owing into the pool. Make sure that the pressure in the circulation line does not exceed 1.0 bar!
We recommend using the convenient BAYROL Smart&Easy Connector with the additional ow monitoring.
4
Tools needed for Installation (not included)
7
Cutting the hoses
IMPORTANT:
The electrical installation of the Automatic
pH
must
be done by an electrician.
1. Residual Current Protective Device (RCD) ≤ 30 mA
2. Filter control respectively time switch
3. Power supply for dosing pumps
(voltage only when circulation pump is running)
90°
23.5 mm
22
