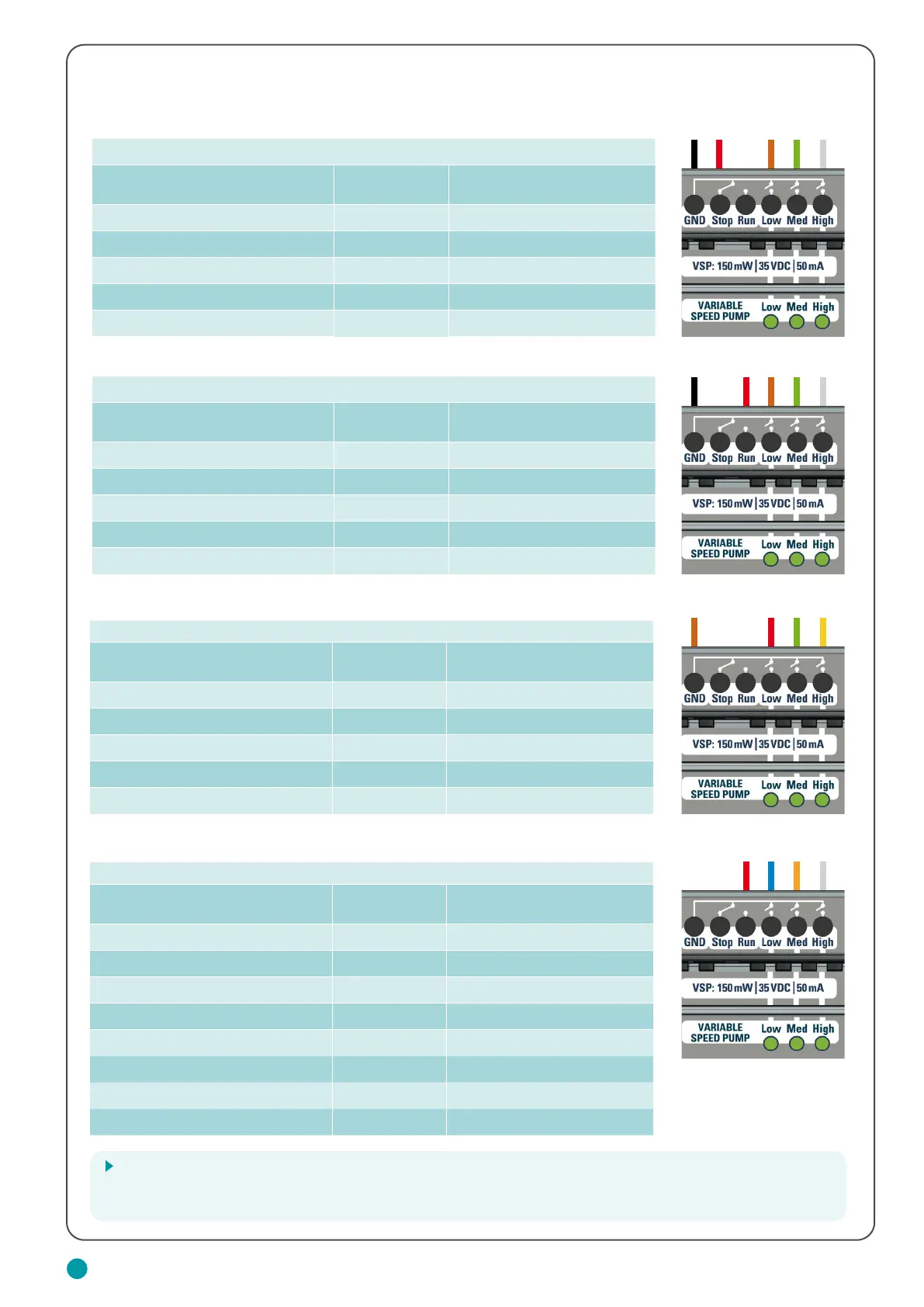

Connection table
Definition Wire color
Connection
Smart&Easy Control Module
n 1 Brown Low
n 2 Green Med
n 3 White High
Stop Red Stop
GND / common
Black
GND
5.2.2 Hayward VSTD
Connection table
Definition Wire Color
Connection
Smart&Easy Control Module
DI1 (speed) V1) Brown Low
DI2 (speed) V2) Green Med
DI3 (speed V3) White High
DI4 (Run/Stop) Red Run
C (All) Black GND
5.2.1 Speck Badu ECO
Applies to Speck BADU ECO (Touch, Touch-pro, Flow and 90 Eco VS)
Hint
The colour coding of all cables is specied by the pump manufacturer. Make sure that the color assignment
given here matches the one in the pump data sheet!
Connection table
Definition
analog J3 terminal
Wire color
Connection
Smart&Easy Control Module
INPUT 1 Red Low
INPUT 2 Green MId
INPUT 3 Yellow High
INPUT 4 – –
COMMON (5) Brown GND
5.2.3 Zodiac FloPro
Connection table
Definition Wire Color
Connection
Smart&Easy Control Modul
+5V output for digital Inputs Red Run
Common Ground Black –
Speed 1 Digital Input White High
Speed 2 Digital Input Blue Low
Speed 3 Digital Input Orange Med
Quick Clean Digital Input Brown –
RS-485A Green –
RS-485A Yellow -
5.2.4 Pentair Dura I VS2 & Ultraow VS2
