Hint
Attention: Many heat pumps have a dedicated terminal that allows the lter pump to be controlled by the heat
pump. This terminal is usually located next to the heat pump’s power terminal. The Smart&Easy Control Module
must not be connected to this terminal block.
The following connection variants are supported by the Smart&Easy Control Module. To choose the right type of
wiring, please consult the instructions for your heating system.
A) Direct control of the heating system
Controls the heating directly. Depending on the model, there is a separate input (terminal) dedicated to the remote
control of the heat pump, where the switching cable from the Smart&Easy Control Module can be connected.
B) Control via the owswitch input

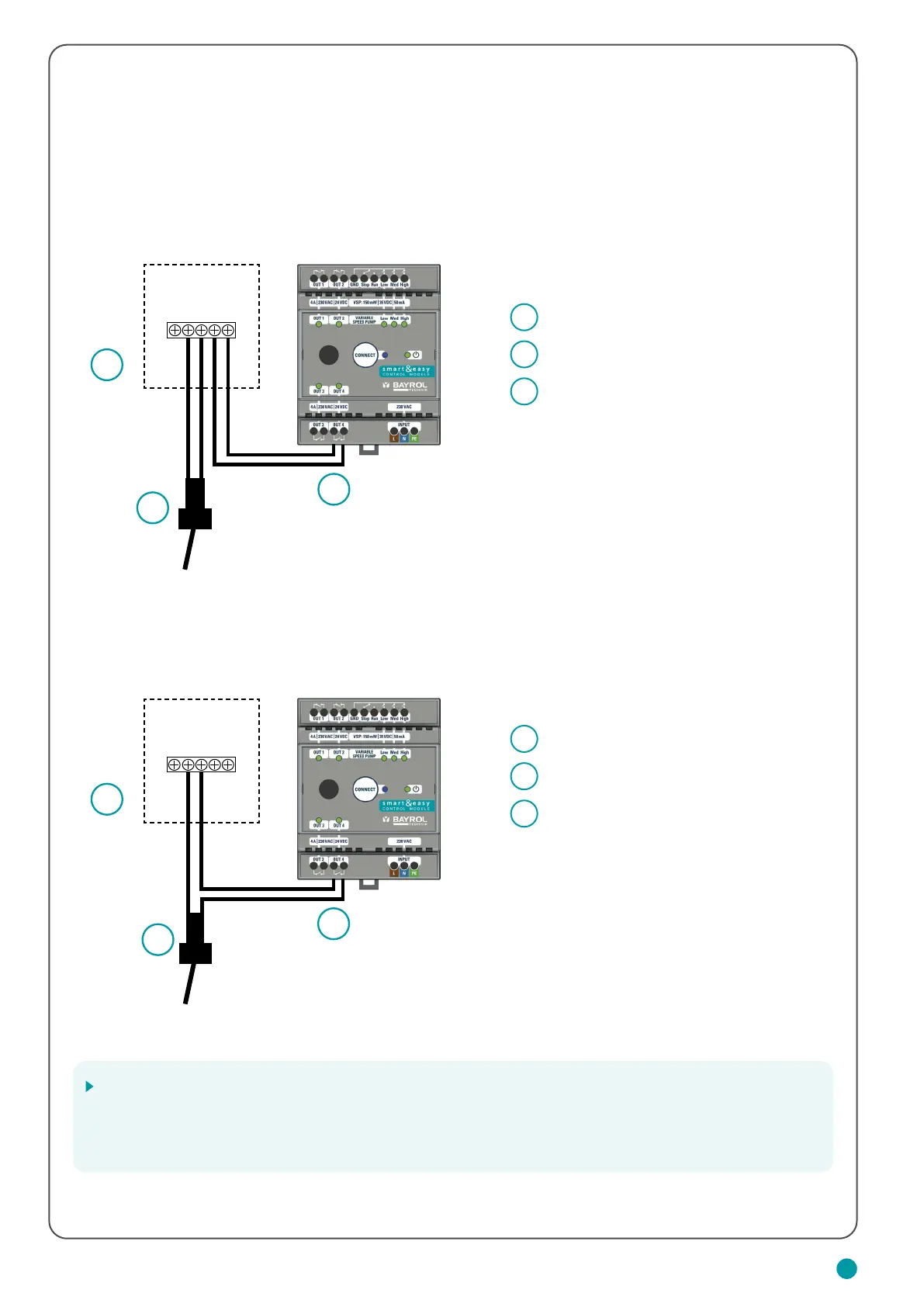

In this case, the Smart&Easy Control Module is connected in series with the ow switch, see connection diagram.
1
2
3
Electric Heater / Heat Pump
Internal ow switch of the heater
Connection to OUT 1 – 4
1
2
3
Electric Heater / Heat Pump
Internal ow switch of the heater
Connection to OUT 1 – 4
5.3 Pool heating
1
3
2
1
3
2
