Hint
– The transformer must be designed according to the
pool lighting to be connected.
– A 230 V AC control, e.g. for ambient lighting, is
shown in point 5.5.
Hint
For the switching large electrical loads, such as pumps
or fans, a power contactor must be used to separate
the control and main circuits. (analogous to point 5.1.
Single-stage lter pump)

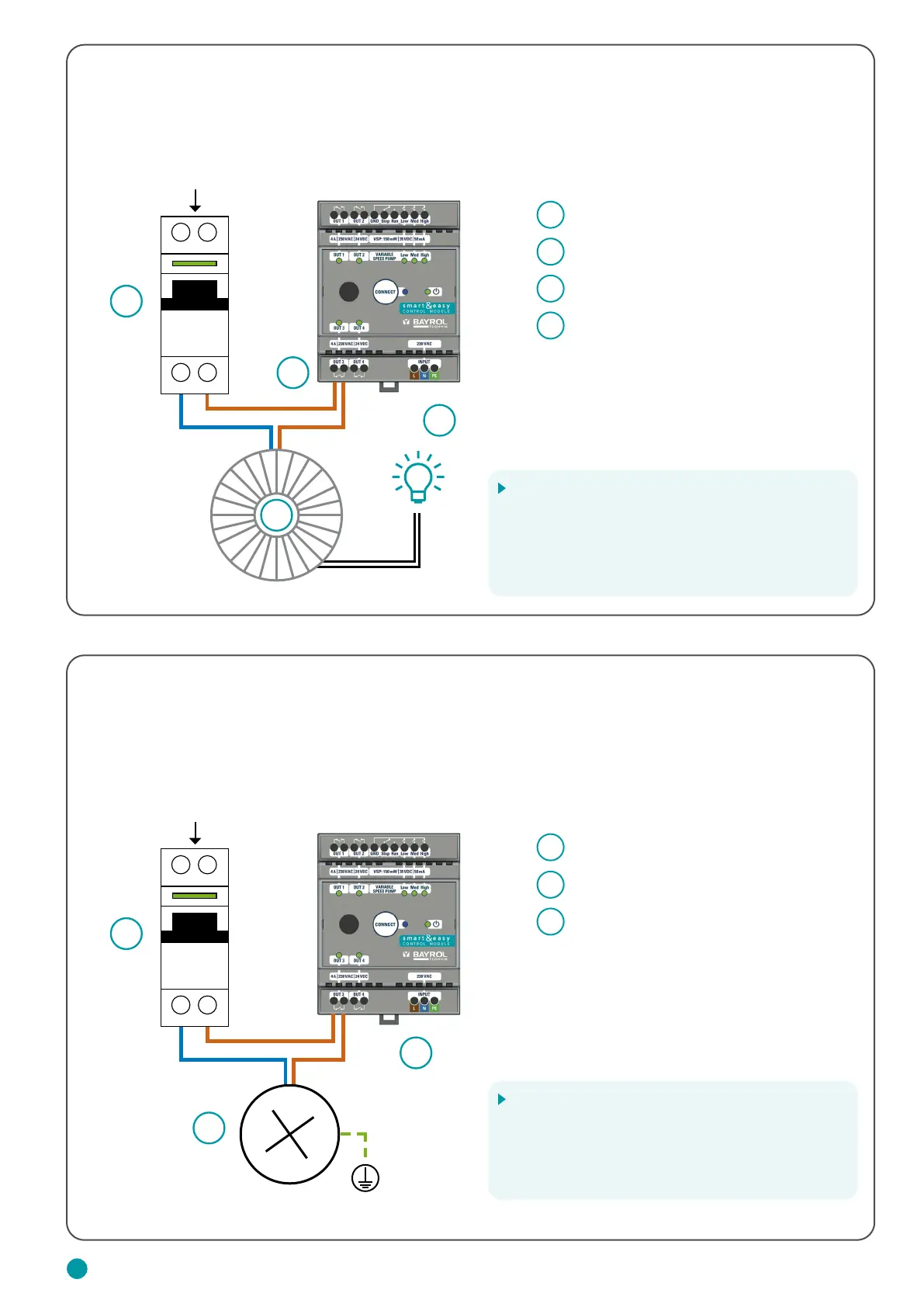

5.4 Pool Lighting (Underwater Light)
When installing a 12 V pool lighting, a transformer is required, which can be installed according to the following gure.
5.5. Other (pool) equipment
In addition to the installations already mentioned, you have the option of using the Smart&Easy Control Module
to switch other 230 V-operated devices, such as the outdoor lighting. This function is called the universal switching
function and is generally connected as follows:
1
2
3
Circuit breaker
Transformer for pool lighting
Pool Lighting
OUT 1 – 4
4
1
2
3
Circuit breaker
Device / Other (pool) equipment
OUT 1 – 4
1
1
3
3
4
2
2
230V AC + RCS (≤ 30 mA)
230V AC + RCD (≤ 30 mA)
