Assembly Instructions

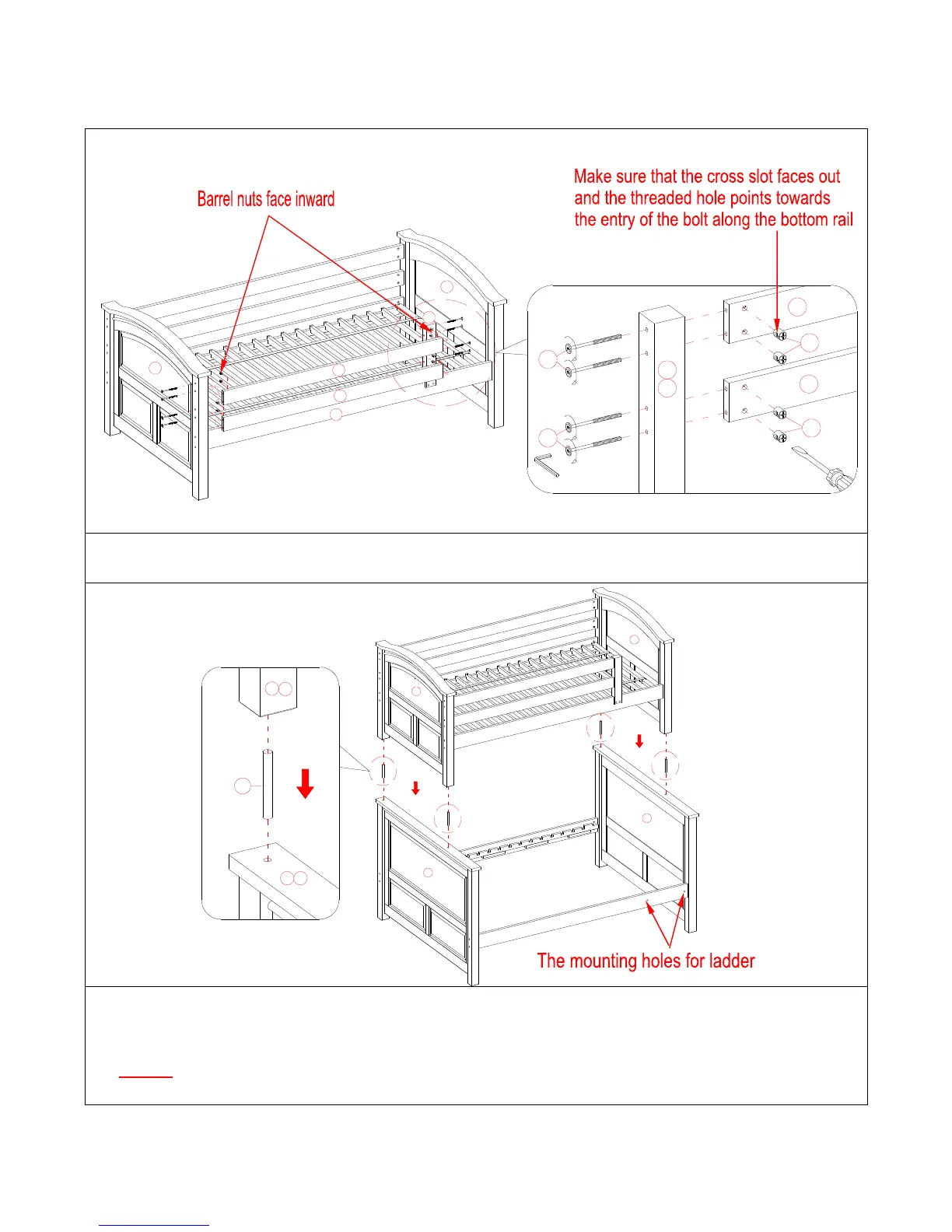

9. Attach two short guardrails (J) between the front guardrail post (K) and upper headboard (C) using eight
bolts (AA) and eight barrel nuts (DD). Tighten all the bolts with the provided hex wrench.
10. Place the lower bunk in the desired location in the room where the bunk bed will sit.
11. Insert four bed connector pins (GG) into the top holes of the lower bunk as shown.
12. Ask for assistance to stack the assembled upper bunk onto the bed connector pins (GG) on the lower bunk.
NOTE: Make sure that the upper bunk sits completely on the top of the lower bunk and the pins go all the
way in, not leaving any gaps.
A
B
C
D
A
GG
C
D
B
G
J
J
C
D
K
DD
J
J
C
K
AA
AA
DD
