Lagoon CTC Fan Installation Instructions
5 | P a g e
Light kit installation (For fan with light)
Install the globe (included, Max. 23W, GX53) in the lamp holder.
HANGING THE FAN

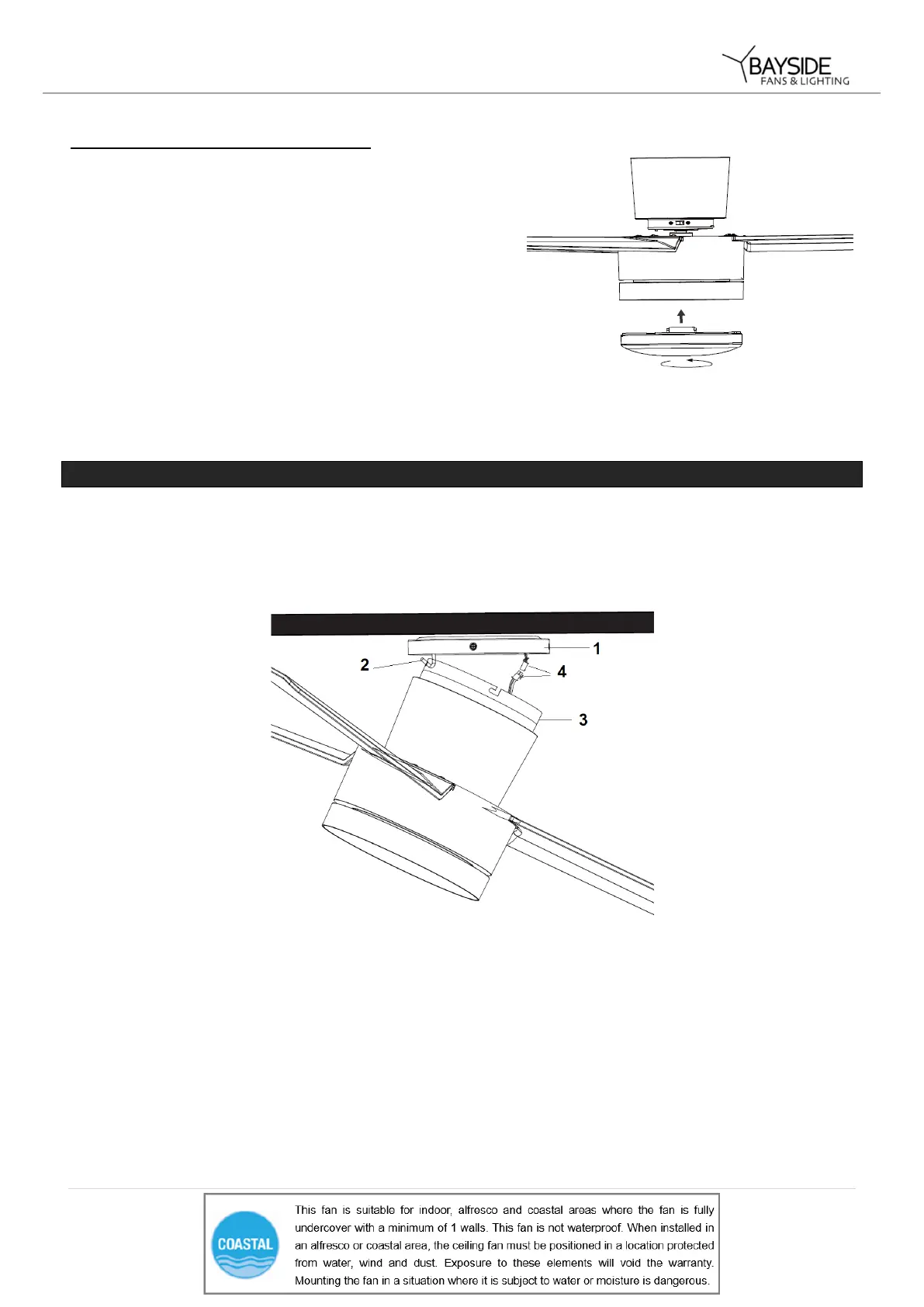

• Lift the fan assembly to the mounting bracket (1) and let the J-hook (2) of the mounting bracket go through
the hole of the hanging canopy (3) and hang up the fan assembly. Fig. 5
• Connect the male and female connector together (4). Fig. 5
• Complete the electrical wiring using the diagram below (Fig.6).
