Lagoon CTC Fan Installation Instructions
4 | P a g e

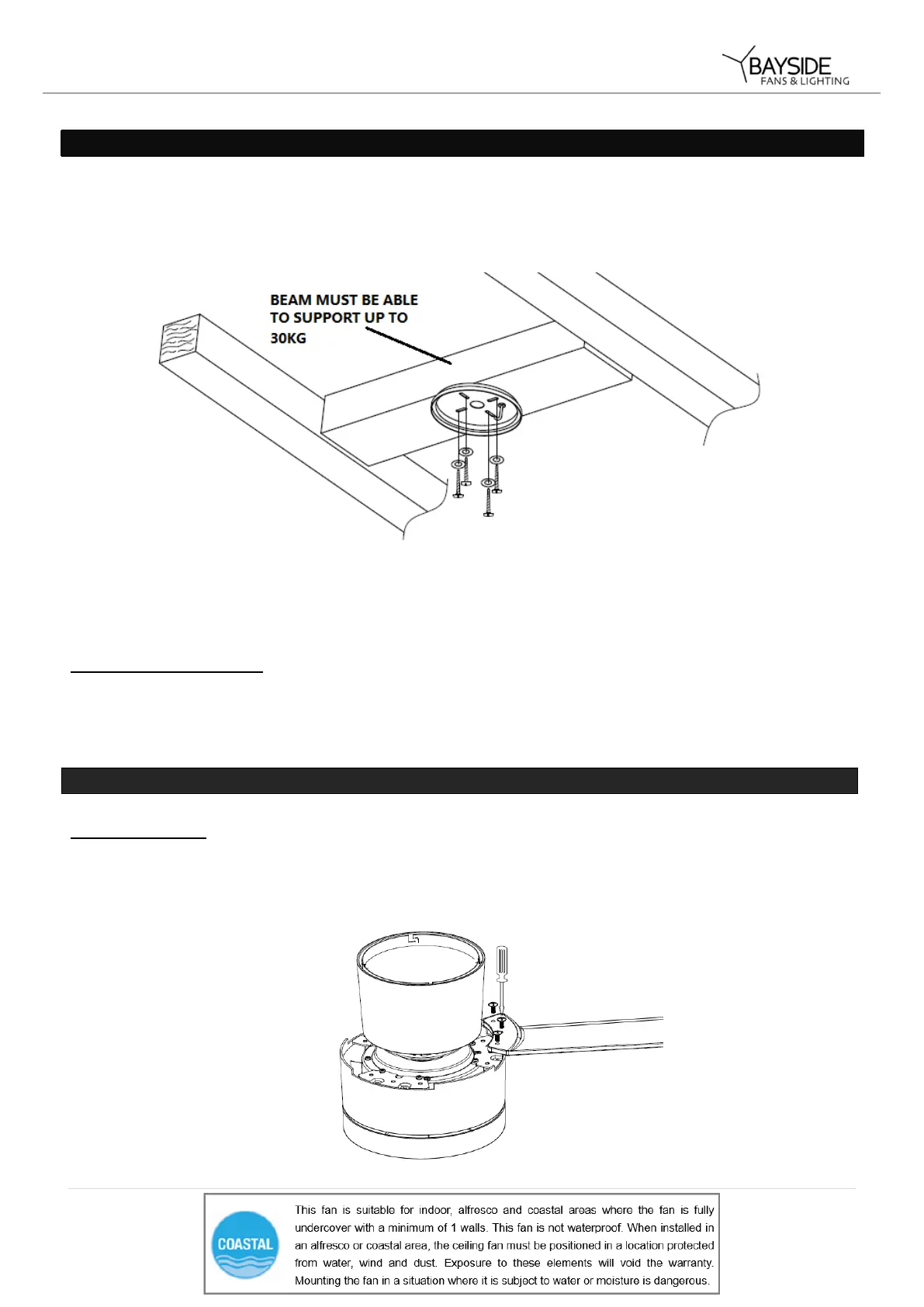

INSTALLING THE MOUNTING BRACKET
• The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade
to the nearest objects or walls.
• Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support.
NOTE: The bracket screws provided are for use with wooden structures only. For structures other than
wood, the appropriate screw type MUST be used.
Angled ceiling Installation
This fan hanging system DOES NOT support a degree angled ceiling installation.
INSTALLING THE FAN
Blade attachment
Secure the blade on the motor by using 3 screws to tighten it, ensuring they are tightened simultaneously.
(Take care not to over tighten as this can damage blades)
Once completed, repeat the process on the remaining blades.
