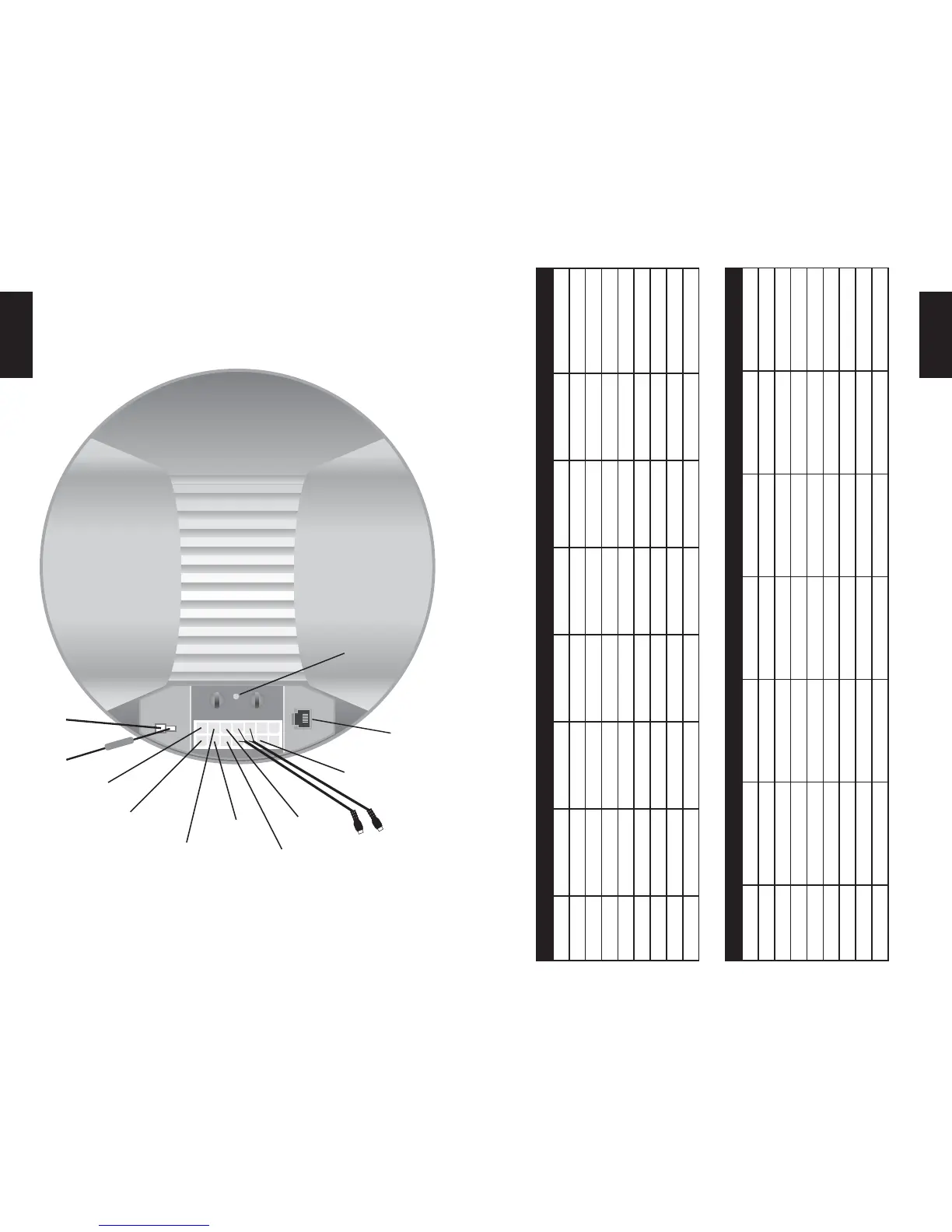

A200 WIRING DIAGRAM
BROWN
HI-LEVEL
OUTPUT (+)
GRAY/TRACE
HI-LEV
INPUT (-)
GREEN/TRACE
HI-LEV
INPUT (-)
ORANGE
REMOTE
YELLOW
HI-LEVEL
OUTPUT (-)
GRAY
HI-LEV
INPUT (+)
GREEN
HI-LEV
INPUT (+)
RCA PHONO
PLUGS Right & Left Low
Level Inputs
12 GAUGE
BLACK
CHASSIS
GROUND
12 GAUGE
RED
BATTERY
(12v+)
AMPLIFIER
STATUS LED
OPTIONAL
REMOTE
CONTROL
CONNECTOR
15 AMP
ENGLISH
ENGLISH
AMPLIFIED TUBE SPECIFICATIONS
BTA6100 BTA8100 BTA10100 BTA6200 BTA8200 BTA10200 CS8A5
Woofer Size 6.5 8 10 6.5 8 10 8 Voice Coil Size 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power. /high temp. 1.5 high power. /high temp. 1 high power. /high temp. Magnet Size 13 oz. 15 oz. 28 oz. 20 oz. 28 oz. 28 oz. 28 oz. Frequency response* 39-85 hz. 39-85 hz. 39-85 hz. 39-250 hz. 39-250 hz. 39-250 hz. sub 20-100hz/Hi-pass 100-20khz Efficiency** 103 dB* 105 dB* 107 dB* 100 dB* 102 dB* 104 dB* 105 dB* Power Handling 100 watts 100 watts 100 watts 200 watts 200 watts 200 watts sub 100w x 1/hi-pass 25w x 4 Dimensions 18.125 x 6.75 x 8 18.125 x 8.5 x 10 20.875 x 10.3 x 12.2 18.325" x 6.75"x 8" 18.325" x 8.5" x 10" 21.1" x 10.3" x 12.2" 18.325" x 8.5" x 10" Weight 12 lbs. 14 lbs. 24 lbs. 15 lbs. 20 lbs. 25 lbs. 20 lbs. Impedance 2 ohms DVC 2 ohms DVC 2 ohms DVC 4 ohms 4 ohms 4 ohms 2 ohms DVC
PASSIVE TUBE SPECIFICATIONS
BT6014/6018 BT8014/8018 BT1014/1018 BT6024DVC/6028DVC BT8024DVC/8028DVC BT1024DVC/1028DVC
Woofer Size 6.5 8 10 6.5 8 10 Voice Coil Size 1.5 high power. /high temp. 2 high power. /high temp. 2 high power. /high temp. 1.5 high power. /high temp. 2 high power. /high temp. 2 high power. /high temp. Magnet Size 20 oz. 28 oz. 28 oz. 28 oz. 36 oz. 36 oz. Frequency response* 39-1500 hz. 39-1500 hz. 39-1000 hz. 39-1500 hz. 39-1500 hz. 39-100 hz. Efficiency** 100 dB* 102 dB* 104 dB* 100 dB* 102 dB* 104 dB* Power Handling 6-100 watts/channel 6-150 watts/channel 6-200 watts/channel 6-150 watts/channel 6-200 watts/channel 6-250 watts/channel Dimensions 18 x 6.75 x 8 18 x 8.5 x 10 20.75 x 10.3 x 12.2 18" x 6.75"x 8" 18" x 8.5" x 10" 20.75" x 10.3" x 12.2"
Weight 11 lbs. 15.5 lbs. 23 lbs. 13 lbs. 19 lbs. 26 lbs. Impedance 4 ohms/8 ohms 4 ohms/8 ohms 4 ohms/8 ohms 4 ohms/8 ohms 4 ohms/8 ohms 4 ohms/8 ohms
